LaboratoryInstrumentIndia is a renowned name in the field of concrete testing equipment manufacturing, supplying, and exporting. We specialize in providing top-quality concrete testing instruments that adhere to international standards for accuracy and reliability.
Our comprehensive range of concrete testing equipment includes Two Way Hydraulic Valve, Air and water permeability of concrete, coefficient of thermal expansion of concrete, and concrete water impermeability tester three points, among others. These instruments are designed to accurately assess the quality and strength of concrete, ensuring structural integrity in construction projects.
As manufacturers, we prioritize innovation and precision engineering, incorporating advanced technologies to enhance performance and durability. Our instruments are supplied through a reliable network of partners in India, China, and Kenya, guaranteeing timely delivery.
Whether you need concrete testing solutions for building projects, infrastructure development, or research purposes, LaboratoryInstrumentIndia is your trusted source for high-quality equipment. Contact us today to discuss your requirements and benefit from our expertise in concrete testing instrumentation.
Concrete Testing Equipment, Concrete Testing Equipment Equipments, Concrete Testing Equipment Tools, Concrete Testing Equipment Tool Kits, Concrete Testing Equipment Manufacturers, Concrete Testing Equipment Suppliers from India, China, Kenya
Lab Tender Suppliers Africa and Lab Equipment Africa Kenya, Uganda, Sudan, Algeria, Morocco, Angola, Ghana, Mozambique, Madagascar, South Africa, Ivory Coast, Cameroon, Niger, Burkina Faso, Mayotte, Sao Tome, Seychelles, Zambia, Chad, Somalia, Senegal, Zimbabwe, Guinea, Rwanda, Benin, Burundi, Tunisia, South Sudan, Mali, Malawi, Nigeria, Ethiopia, Egypt, DR Congo, Tanzania, Togo, Sierra Leone, Libya, Congo, Central African Republic, Liberia, Mauritania, Eritrea, Gambia, Botswana, Namibia, Gabon, Lesotho, Guinea Bissau, Equatorial Guinea, Mauritius, Eswatini, Djibouti, Reunion, Comoros, Cape Verde, Western Sahara Ministerial Tender Board Lab Equipment India, Ministry of School Education Lab, Vocational Training Lab Tenders Suppliers India
Lab Instruments School Training Lab Equipment Suppliers India
Distance pieces dia. 210 mm, finish-grinding, for high stability machines: 2000kN, 3000kN, 2000kN blocks and 3000kN blocks. High 76 mm.

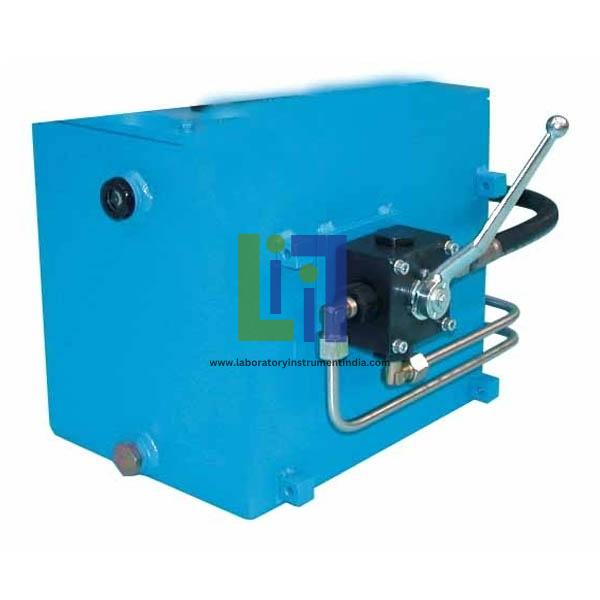

....Two hydraulic valve connected to the motorized pumping unit of the machine to activate a second frame. To activate alternatively two testing frames by using the same pumping unit. Installed on the pumping unit mod. Complete with protection case.

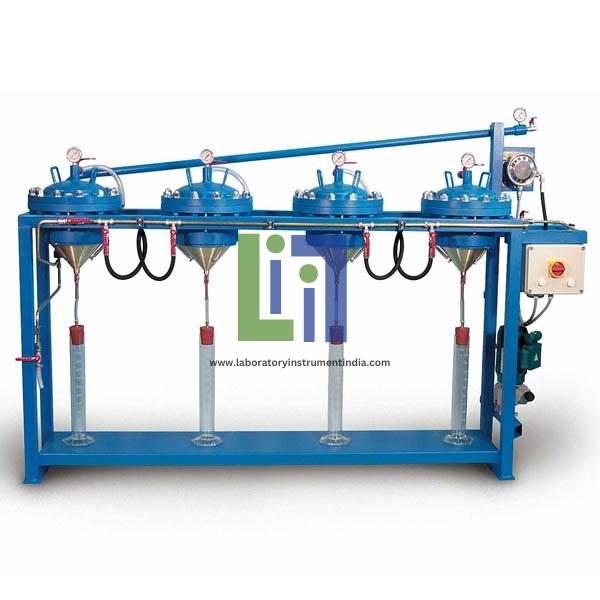

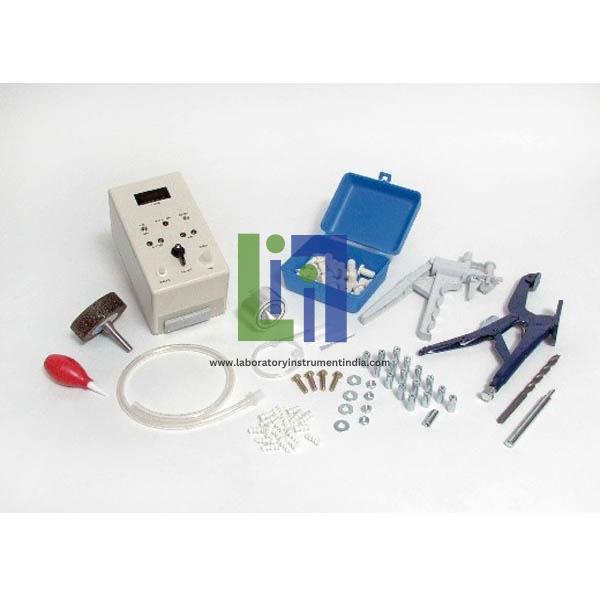

....Permeability is recognized as being the most important parameter in assessing concrete durability. The depth test is performed by drilling a hole 10 mm diameter x 40 mm deep, and plugged with a silicone rubber plug. The ingress of air and moisture into the concrete can cause corrosion of the steel reinforcement and lead to a deterioration in concrete strength. An hypodermic needle is passed into the stopper; the water permeability test is performed by measuring the time of absorption needed by the water introduced into the void by pressure. Therefore, a measure of the ease of movement of liquids and gases through the surface layer of the concrete is a better method of assessing the soundness and expected life of concrete than strength alone. Surface permeability tests can be carried out by clamping a stainless. For the air permeability test, a vacuum pressure is created in the void, and the time needed to rise this pressure is measured.
....The product is designed to accumulate all height measurements without surface treatments, special holding jigs or other accessories. All height measurements are accomplished by a high precision LVDT. The height measurements of the sample are taken and averaged over a range of specified temperatures. CTE values are automatically calculated and displayed when the test cycle is completed. An advanced and automatic method and device for measuring the Coefficient Of Thermal Expansion Of Concrete cores. The product is completely self-contained and operates with easy to understand graphical interface software. All functions are completely automatic, including accurate controls for heating, cooling and height measurements.
....The Concrete Water Impermeability Tester Three Points apparatus is supplied complete with graduated burettes fixed on the front panel. Concrete Water Impermeability Tester Three Points apparatus is used to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure. The water penetrated is measured by breaking the specimen, or by reading the water permeated through the graduated burette. The unit accepts concrete cubic, cylindrical or prismatic specimens having max. dimensions of 200x200x200 mm. A manometer checks constantly the applied water pressure. A known water pressure is applied on the specimens surface for a known time, as requested by Standard, using a suitable air compressor having at least 5 bar pressure.

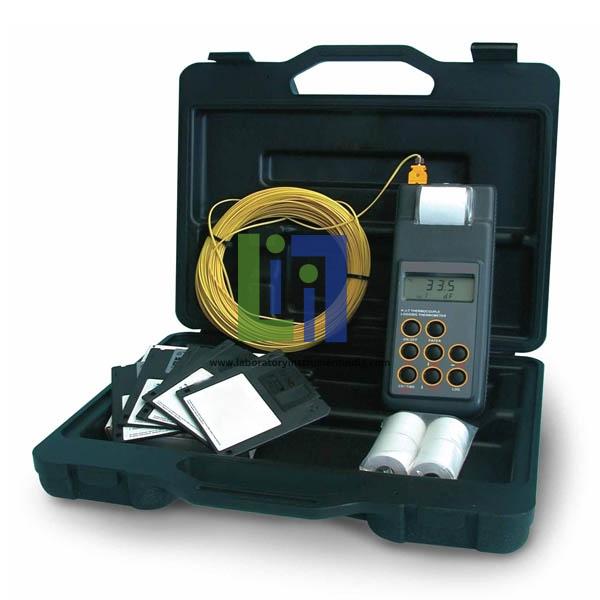

....Thermometer Infrared Interface Two Channels K-type thermocouple, logging and printing with two channels and preset for PC connection and software.

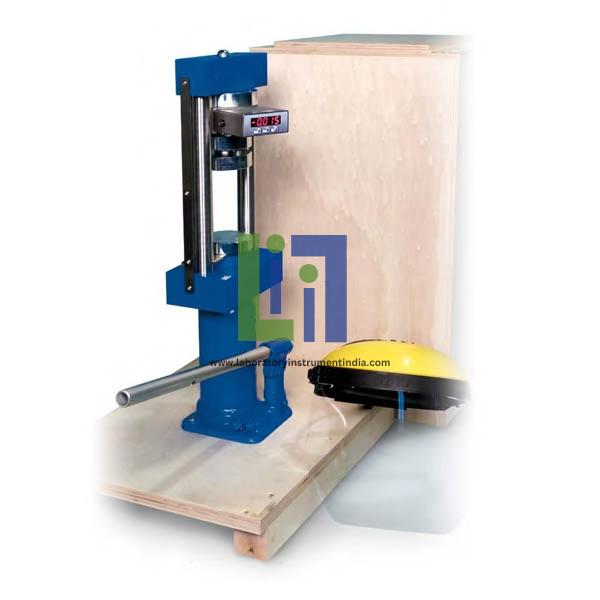

....The load is applied by a hand pump, and is measured by a high precision electric load cell with a digital display unit range 0-56 KN. Portable Digital Press 56KN Capacity Used for compression tests on small cylinder specimens and core samples up to dia. 60x100 mm. Providing:
0,001 KN resolution
65.000 divisions
Hysteresis: 0,03%
Repeatability: 0,02%
Linearity: 0,05%.

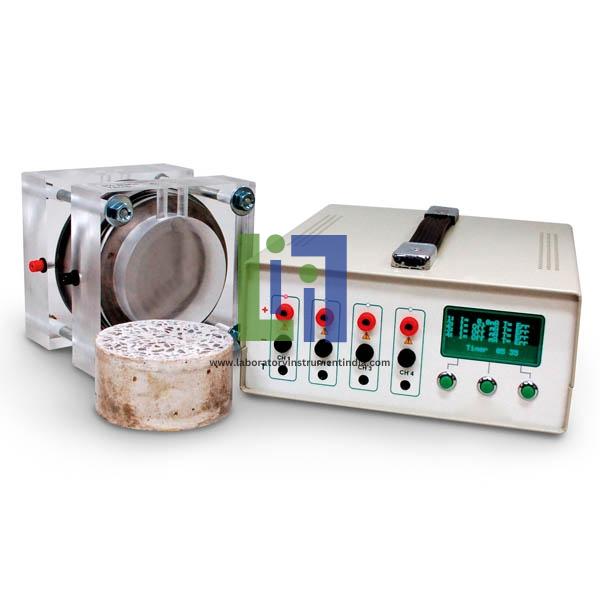

The measurement data can be used to estimate the chloride diffusion coefficient of concrete for the service life prediction and design of concrete structures as well as the durability-based quality control of concrete. Laboratory test device for the measurement of the resistance of the concrete against the penetration of chloride.
Features:
Flexible logging interval time (1 to 10 min)
Automatic temperature control system.
Stand alone operation.
Easy-to-assemble.
Accurate (+/- 0.1 mA)
User-friendly PC software.
Customizable setup.
Four measurement channels.
USB connection to computer.

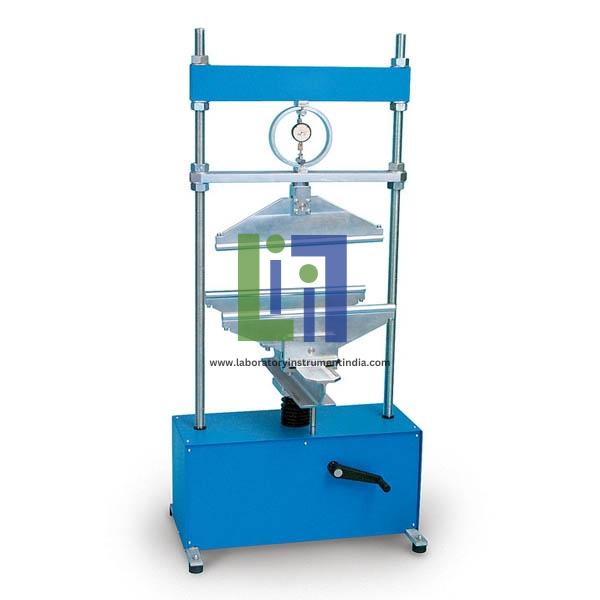

The Flexural Machine For Paving Slabs And Tiles machine consists of: steel frame, one upper bearer and two lower adjustable bearers, mechanical hand-operated screw jack and a 10 KN capacity proving ring to measure the applied load.
....The large display just 9 keys for simple operation using menu technique and intelligent memory render Canin a unique instrument worldwide. 120.000 measurements can be stored in the intelligent memory and called up with the cursor keys. Canin corrosion analysing instrument, for the non-destructive detection of corrosion in the reinforcement bars of concrete building elements. Standard supply includes one bar electrode RS 232 integrated software for printer, cables, copper sulphate carrying case. A measuring surface of more than 4000 sq.mt.can be managed with the large memory.
....The specimens are submitted to hydrostatic stress for a pre-set period. The water permeated through the test specimen is directly collected and measured into a graduated cylinder. It is therefore possible to determine the permeability coefficient in cm/sec. by the attached formula. The equipment consists of a strong metallic frame holding four cells which are hot-galvanized for anti-corrosion protection. Automatic Concrete Water Permeability Apparatus At Four Cells fully automatic apparatus is designed to carry out water permeability tests on cubic concrete specimens max.150 mm side and cylinder specimens max.160 mm diameter. Each cell includes a pressure control manometer.
....Fully automatic procedure with quick and accurate test results (max. errors within 5 kg./cubicmetre). Ram Rapid Analysis Machine Used for the determination of cement content in fresh concrete, coarse and fine aggregate, fly ash and GGBF slag content can also be determined. The complete test takes approx. 10 minutes. The connection to water net for approx. 80 liters each test is required.
....The specimen is put into the test chamber, clamped with suitable flanges with central screw and round gaskets. A known water pressure is applied on the specimens surface for a known time, as requested by Standard using a suitable air compressor having at least 5 bar pressure. Concrete Water Impermeability Apparatus Six Place apparatus is used to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure. The unit accepts concrete cubic, cylindrical or prismatic specimens having max. dimensions of 200x200x200 mm. A manometer checks constantly the applied water pressure. The water penetrated is measured by breaking the specimen, or by reading the water permeated through the graduated burette. The apparatus is supplied complete with graduated burettes fixed on the front panel.

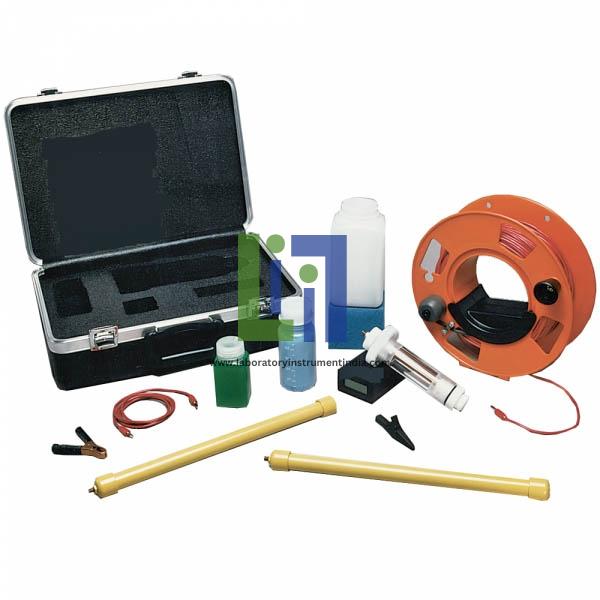

....A simple method for identifying areas of probable rebar corrosion in concrete structures.
Features and Benefits:
High impedance digital meter is designed for tough field conditions.
Easy to use, supplied complete.
Detachable electrode extension pieces (41 cm long) facilitate measurements in hard to reach locations.

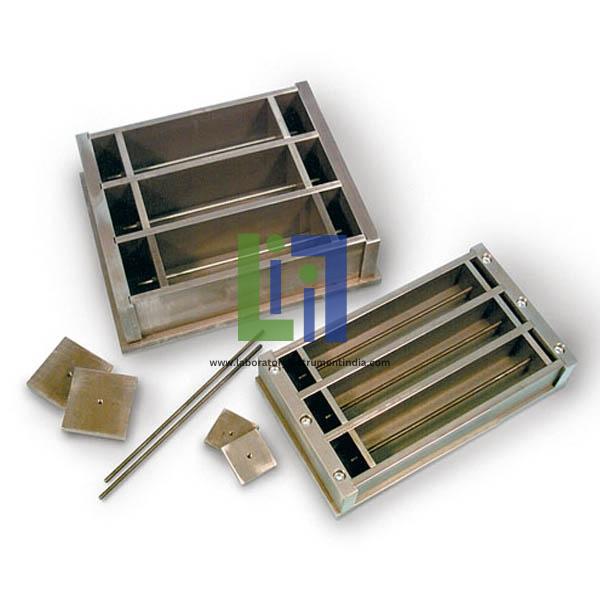

Three gang prism mould to produce 50x50x250 mm specimens.

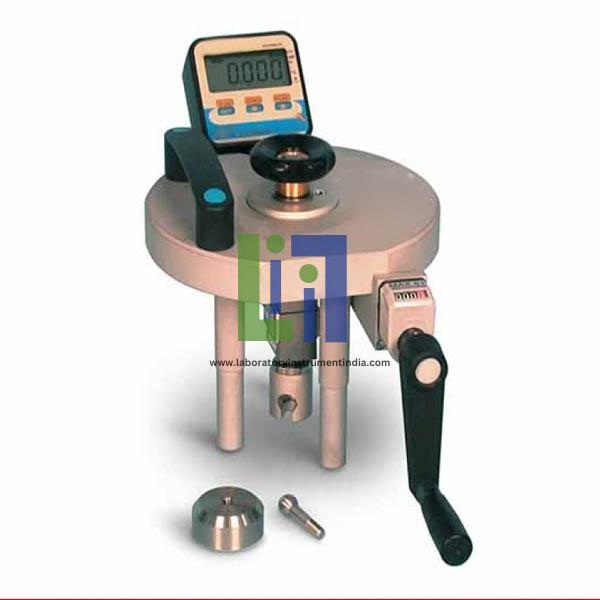

....Compact, light and suitable for use in any location, this Pull-Off Tester is fitted with a load cell and high resolution large digital display unit; it is therefore suitable for measurements from low loads up to 16 KN, granting a wide working range and ideal for a large number of applications and materials. This dynamometer measures the adhesive force and the tensile strength of two layers of materials and is particularly suitable for applications concerning testing repairs of any structure where the bond strength between two layers is an essential factor. The direct tensile force is applied by rotating the hand wheel.

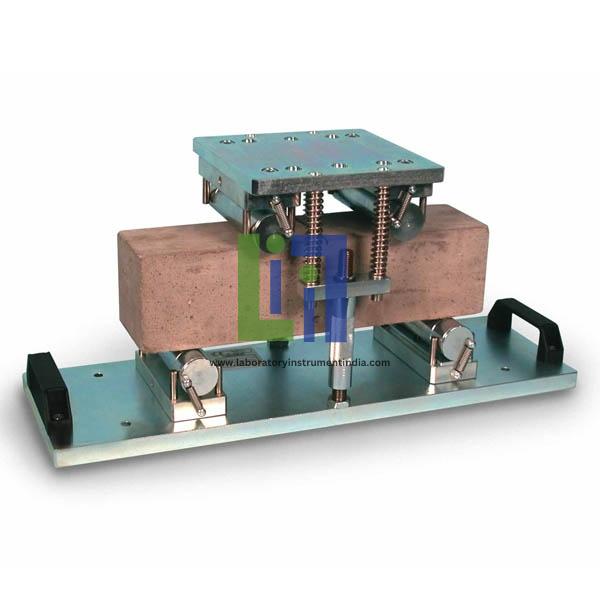

....The equipment can be used only with the flexure Servo-Plus Evolution testing machines models:
Flexure high stiffness frame 200kN capacity
Flexure open-side machine, 150kN capacity.

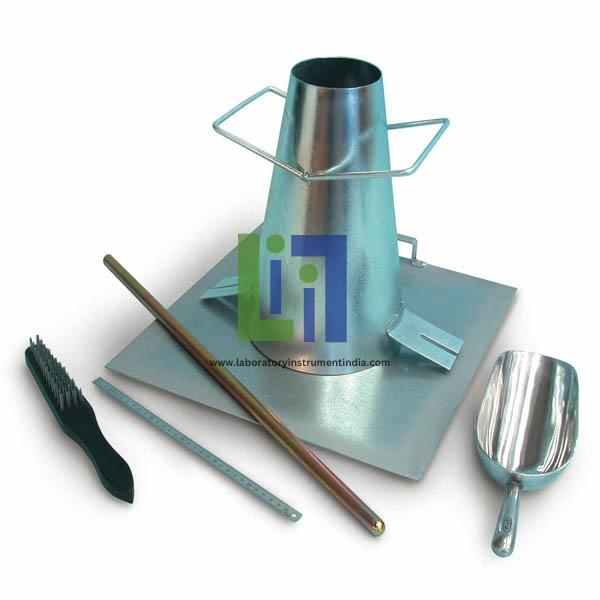

Slump Cone complete set including:
Base plate, galvanized steel
Stainless steel rule, 300 mm long
Slump Cone, galvanized steel
Tamping rod, galvanized steel, dia. 16 x 600 mm
Fine wire brush
Aluminium scoop, 500 cc capacity

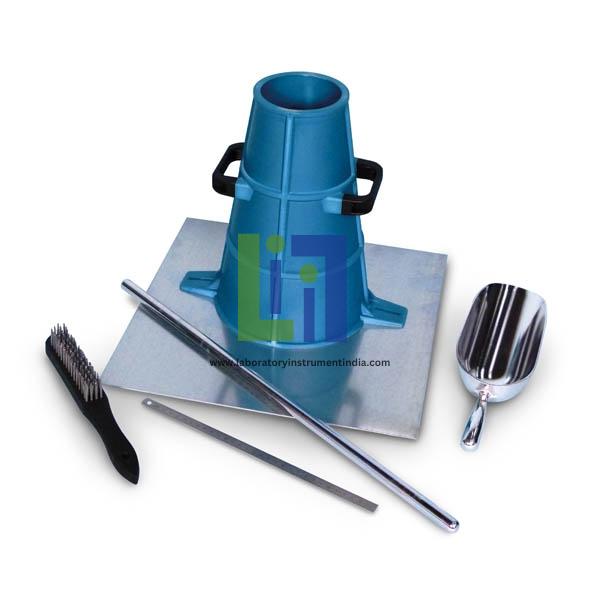

Slump Cone Plastic complete set including:
Tamping rod, galvanized steel dia. 16 x 600 mm
Base plate, galvanized steel
Slump Cone, plastic Weight: 750 g
Aluminium scoop, 500 cc capacity
Stainless steel rule, 300 mm long
Fine wire brush

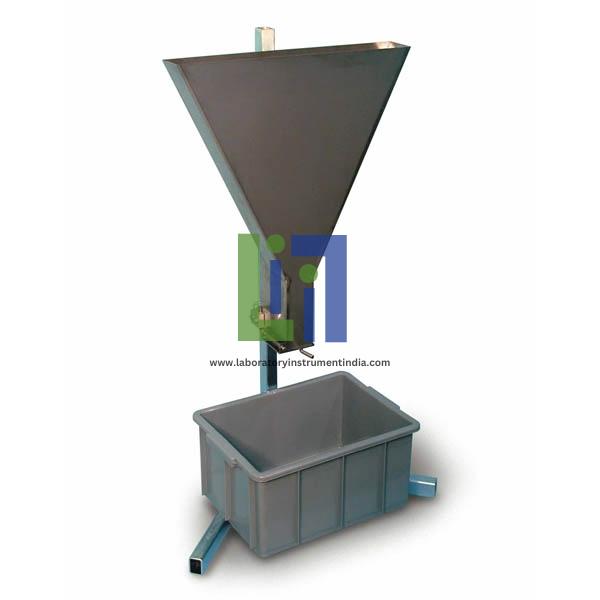

The upper edge of the funnel is smooth and reinforced, and the outflow orifice is equipped of an open able seal valve. V Funnel stainless steel made, having 10 liters capacity stand mounted.
....The unit consists of the standard mechanical but equipped with an electronic transducer that measures the rebound values and supplies automatically the results on a graphic display. This Digital Concrete Test Hammer microprocessor operated, entirely designed and manufactured by with advanced technology, performs basic concrete testing with continuous automatic recording of all parameters in accordance with Specifications, register and process data and then transfer them to a PC.

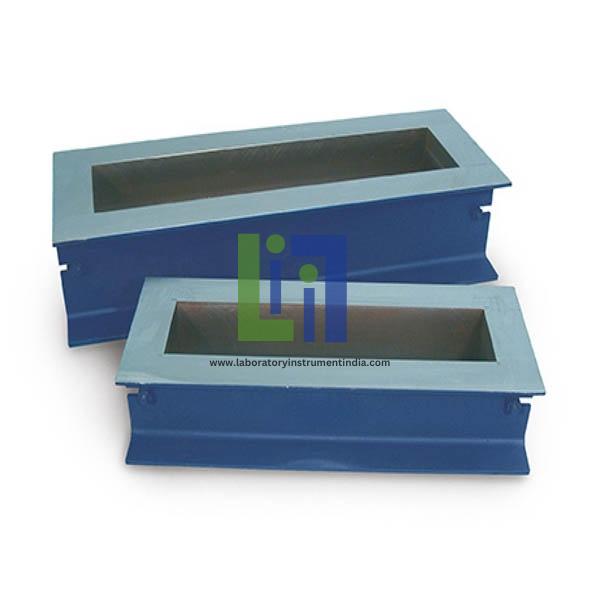

....Beam mould 140x140x560 mm.
Weight: 38 kg

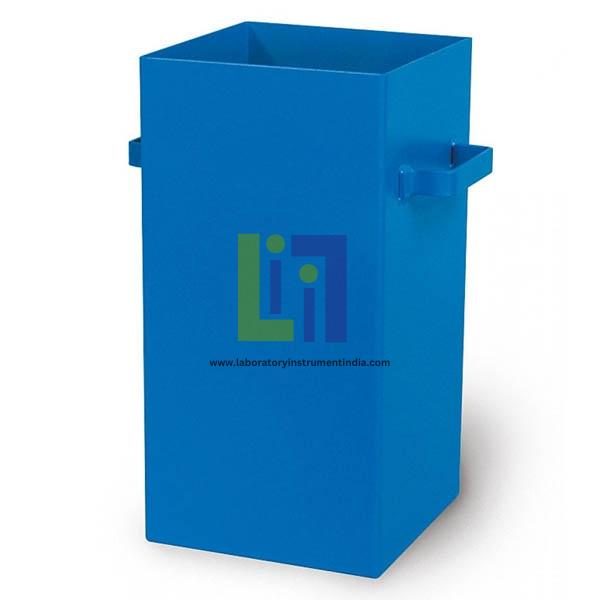

It consists of a metal box with handles 200x200 mm by height 400 mm, painted for rust protection. To measure the consistency of fresh concrete.

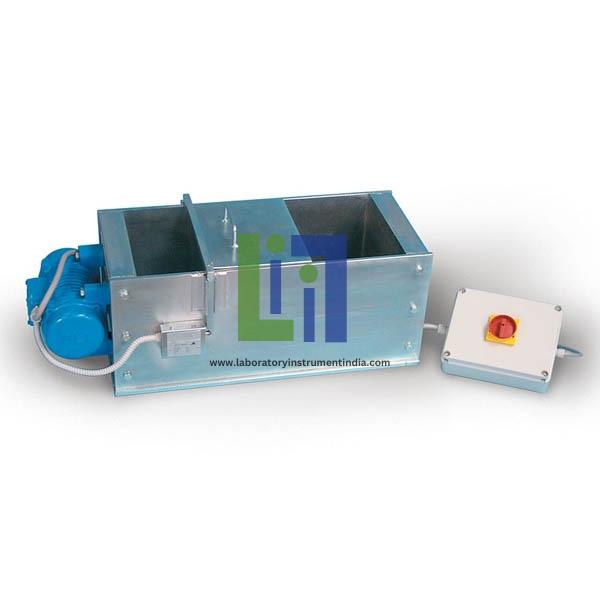

....The Concrete Workability Meter also known as plastometer is designed to test concrete for dynamic workability. It is suitable for field and laboratory tests to check:
Optimum prope rtioning of concrete constituents (sand, gravel, water, cement)
Possible improvement when admixing a plastifier
Concrete mix for consistency, especially water content
Comparing two concrete types
The test consists in measuring the time required for the concrete to reach an uniform distribution in the receivers. The unit consists of a prismatic receiver divided into two unequal volumes by a removable partition, and an electric vibrator. The fresh concrete is poured into the large volume space, the separating partition is removed, and the vibrator starts automatically.
Standard model N for normal concrete casting. Impact energy 2,207 joule

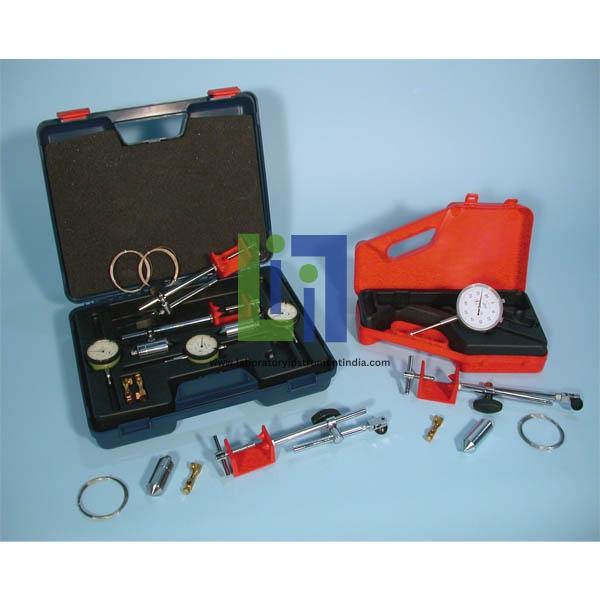

....N° 3 sets of deflectometers (without dial gauges)

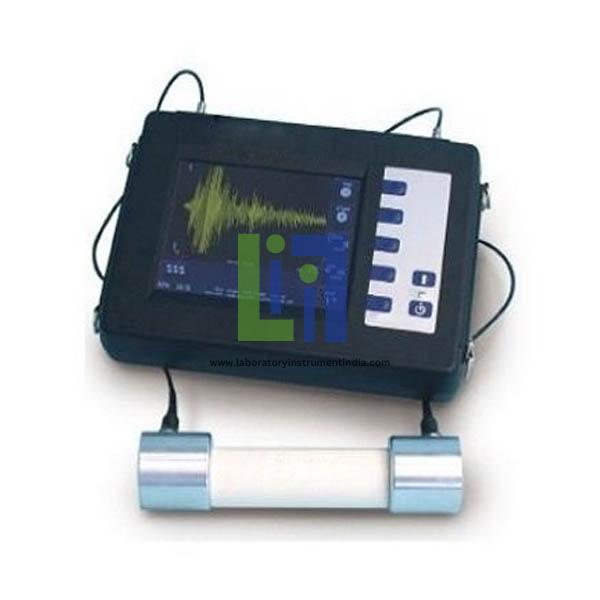

....High Performance Ultrasonic Tester is an instrument using the most modern technologies, it has a 14 VGA colour touch screen, 64 MB, Compact Flash interface, SD card, USB working system Windows CE with the possibility to manage, EXCEL, WORD, PPT files etc. Ultrasonic pulse velocity tester high performance with microprocessor for combined ultrasonic and rebound hammer data acquisition and processing.

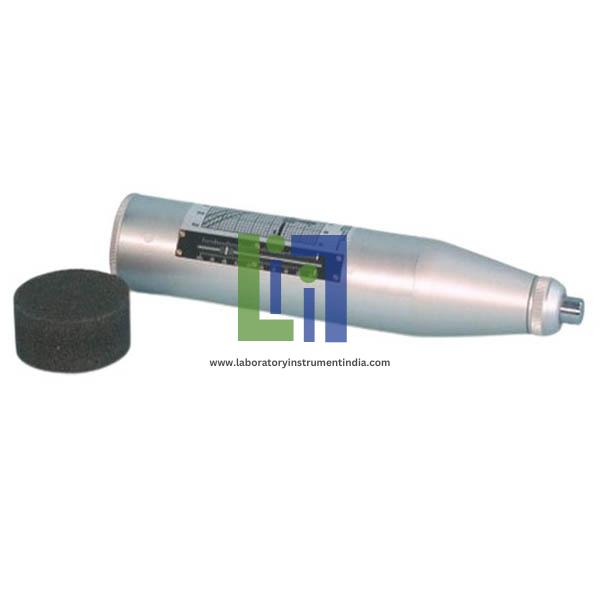

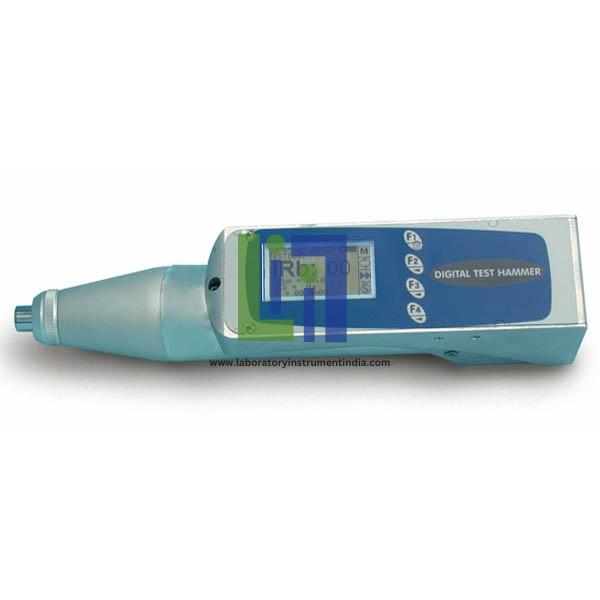

....Schmidt Test Hammer Model NR model having an automatic incorporated device recording on diagram the impact values.

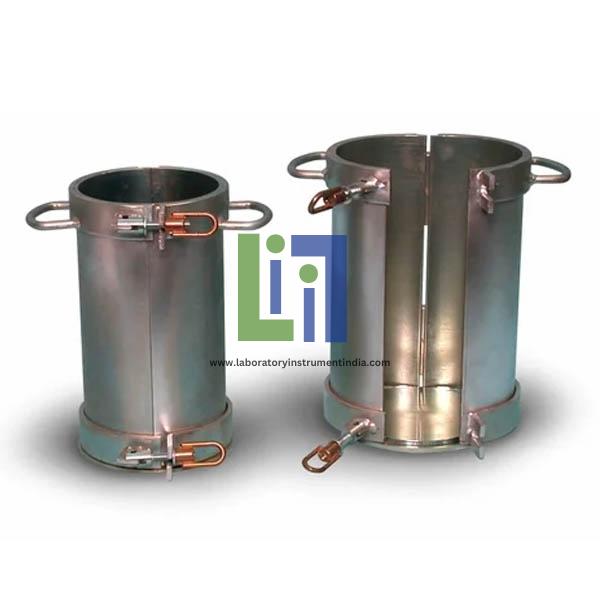

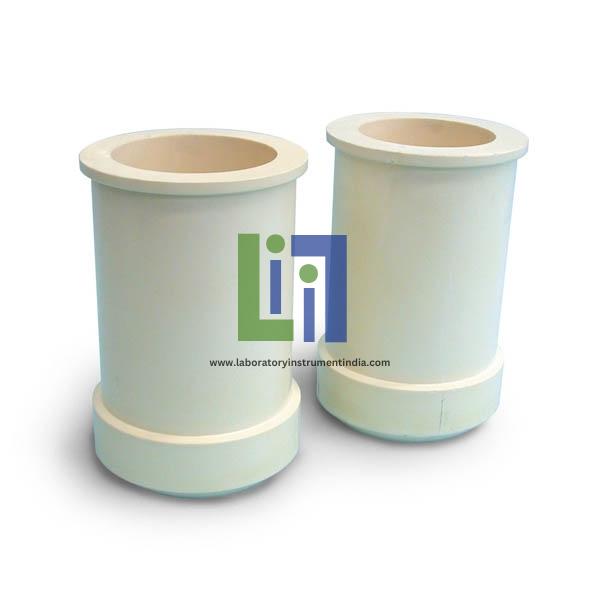

....Cylinder mould dia.160x320 mm.
Weight 2560 g

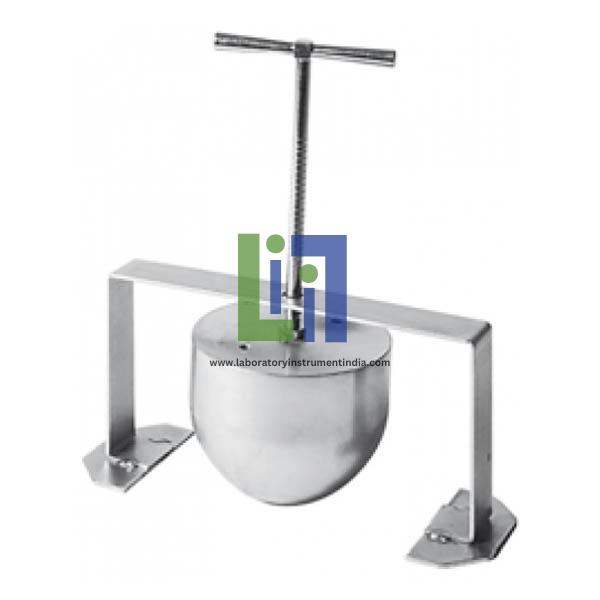

The ball is lowered into the concrete and the penetration measured. Consisting of a hemispheric ally ended cylinder with guiding frame and a handle graduated in inch, it is used to determine the workability of fresh concrete.
Cadmium plated for rust protection.
It can be used on site or in laboratory.

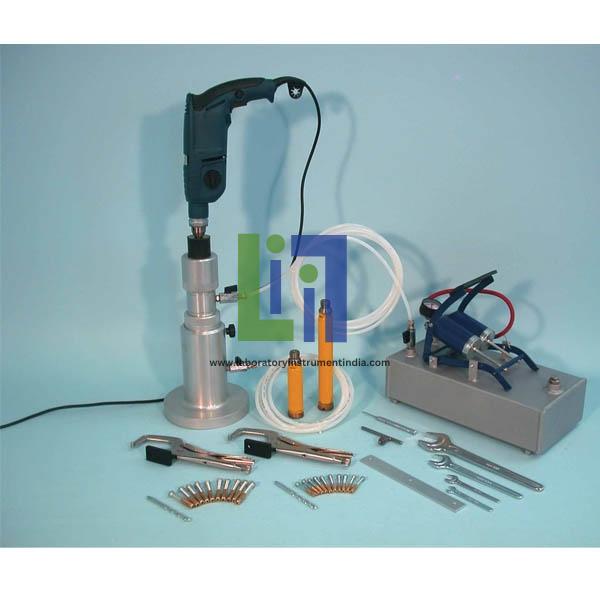

Micro Coring system is ulteriorly valid and reliable if combined with ultrasonic tester and concrete hammer. Micro-core extraction is easy, and requires the presence of one operator only. The extraction of a Micro Coring sample from a concrete structure or masonry is an extremely valid non-destructive method as it allows analysis and accurate evaluations of the manufacture without causing any damages to the structure, considering the dimension of the hole that can be eventually clogged with mortar.

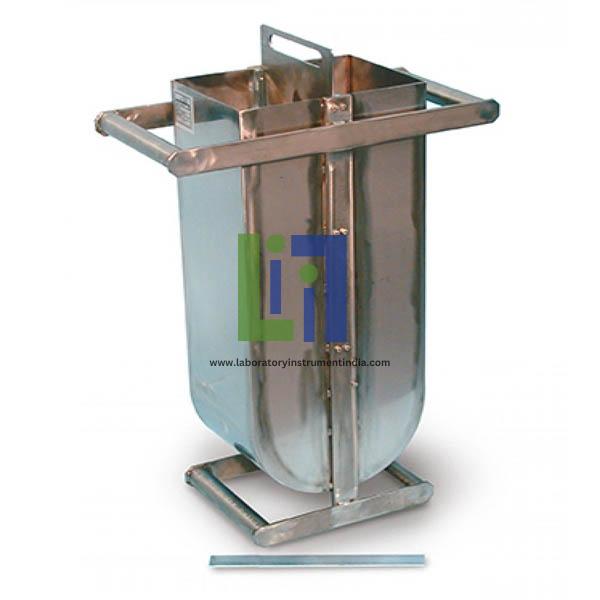

....L Box Stainless steel made consisting of:
Container with inside rigid surfaces,
Two marks far 200 and 400 mm are engraved on the horizontal bottom position.
Obstacle for med by 3 vertical bars having 16 mm dia. with free light of 38 mm,
gate in guillotine form.
Straight Edge 300 MM long galvanized steel, to level the concrete.

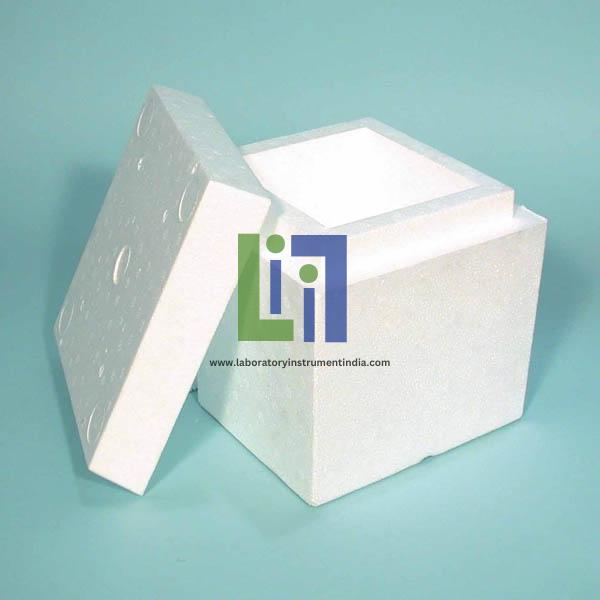

....Polystyrene cube mould, 200 MM side one gang.

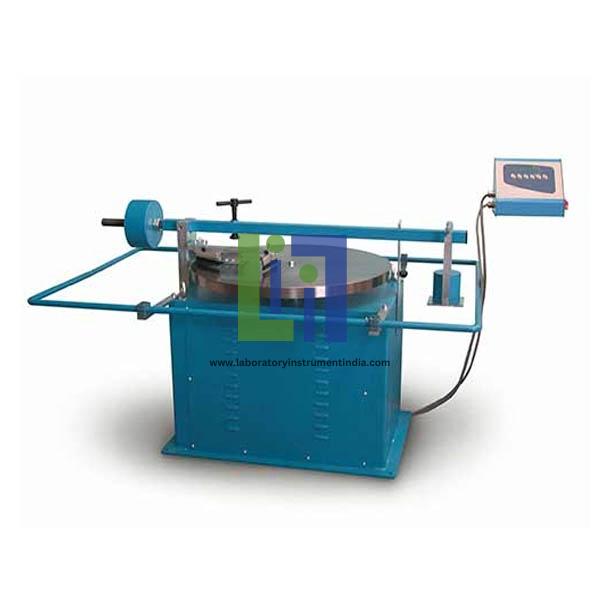

....Perform the test for 16 cycles composed of 22 turn each, calculating at the end a worn as a average loss in volume and weight. Before doing a test, establish the specimens bulk density by measuring weight and thickness. The test is performed by positioning a specimen to be verified in a Abrasion Tester Boehme apparatus on the test track on which has been spread normalized abrasive the grinding wheel its made rotate and the specimen submitted to the abrasive load of 294 N for a certain number of cycles.

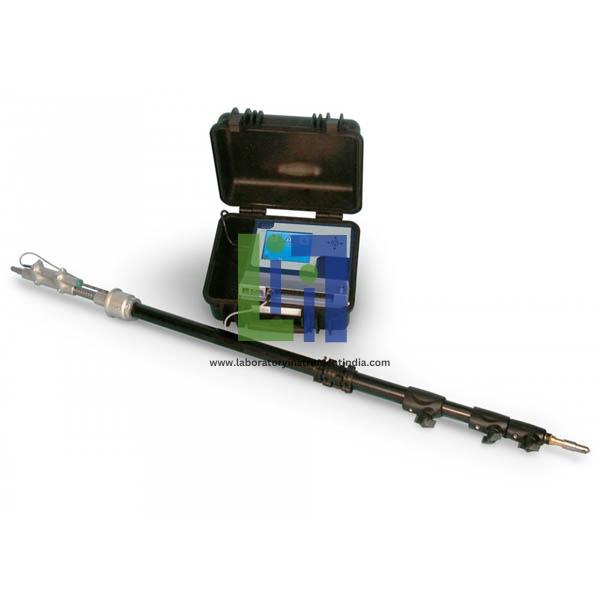

....Deflectometer With Telescopic Tubular Displacement Transducer instrument grants very accurate and reliable test results with data acquisition through Datatronic 7 output to PC for processing, printing and file. Deflectometer With Telescopic Tubular Displacement Transducer Used to determine the deflection under known loads of bridges, ceilings or any suspended structure. One telescopic deflectometer consists of:
Aluminium telescopic tubular anodized frame having 1080 mm mimimum height and 3120 mm maximum extension.
Stainless steel chain, 10 m long for measurements over 3 m.
Linear potentiometric displacement transducer with spring system, fixed on the base of the telescopic tubular frame, with measurements either in compression or tension, +/- 50 mm stroke and 0, 01 mm resolution.
Stainless steel base for anchoring the tubular with ballast, hook, accessories.
Carrying case.

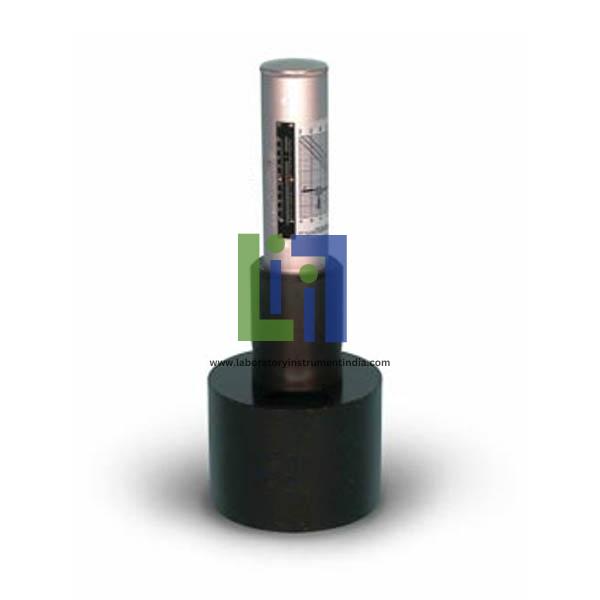

Special steel alloy made. Anvil For Verification Used for the verification of the calibration of the concrete test hammers.
....The standard equipment to Specification and comprises hydraulic extraction unit 100 kN capacity with pump, precision manometer 0-100kN, bearing ring, 10 steel discs 25 mm dia. carrying cases. Used to evaluate the concrete resistance as per the strength applied to extract a disc embedded into concrete.

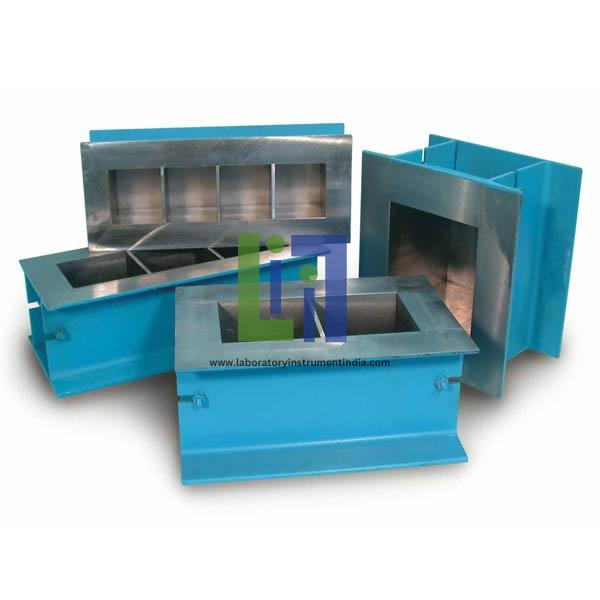

....Cube mould, 200 mm. side 2 gangs.

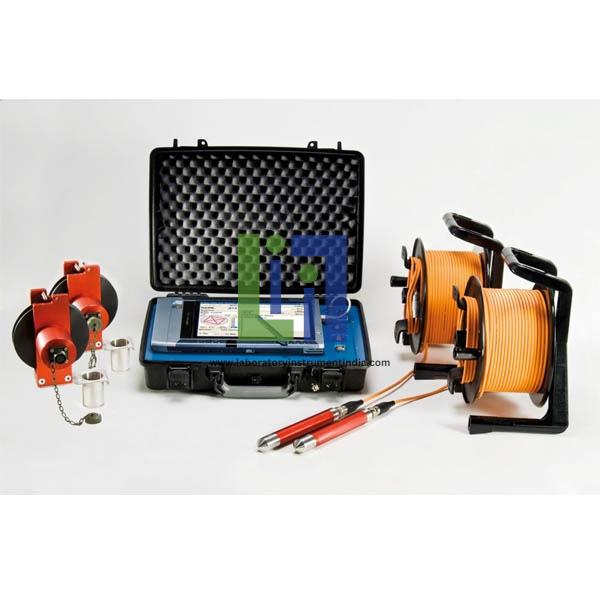

....The system uses an ultrasonic wave sent from an emitter to a receiver while both are pulled through water-filled access tubes embedded in the concrete. The measured arrival time and energy are directly related to concrete quality. The control unit must be connected via USB port standard to a regular notebook computer or Tablet PC (not included) on which, should be installed the software (included) for testing, analysis and real time reporting in 2 D Tomography. The Cross-hole Sonic Logging (CSL) method is used to perform high-resolution quality control on deep foundations.
....Stainless steel manufactured, it is used for the determination of the relative bleeding of a fresh concrete sample, using aggregates having max. size of 50 mm. Container having 250 mm dia. by 280 mm height, complete with cover.
....Beam mould 140x140x560 mm.

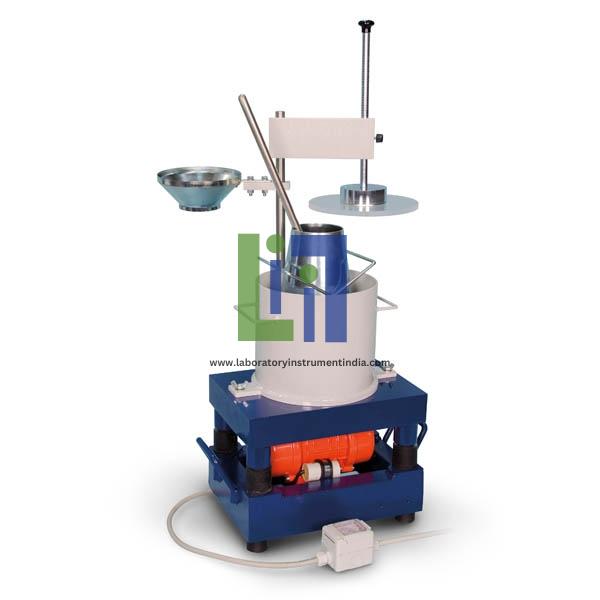

....The Vebe Consistometer method is based on the same principle of the simple slump cone test method, but it has the advantage of a mechanized action, for the determination of the workability of concrete. After removing the slump cone, the concrete undergoes a vibration to determine its slump. Supplied complete.

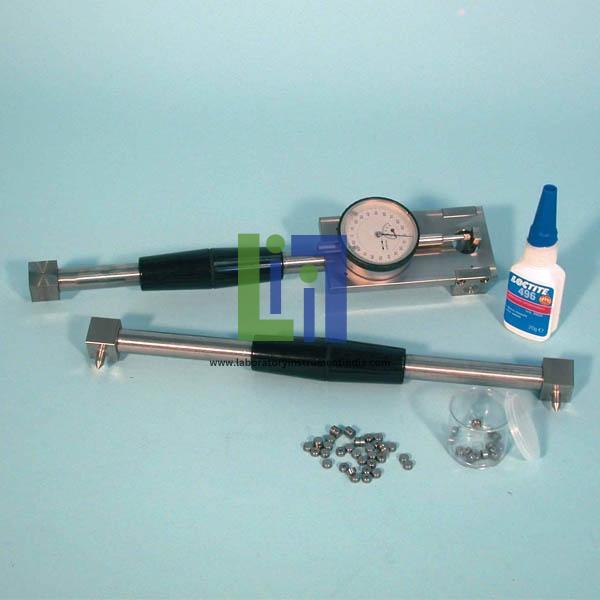

....Analogic Strain Gauge 300 MM Length instrument can also be used for other structures like steel and wood. Strain gauge, 300 mm. measuring length.
Different models are available with analogic or digital gauge, 100, 200, 300 mm measuring length, depending on the standard length to be measured. Analogic Strain Gauge 300 MM Length Used to determine the strain (length changes) in concrete specimens and structures, rock strata, different parts of a structure, in remote areas and under adverse conditions, using a single instrument.

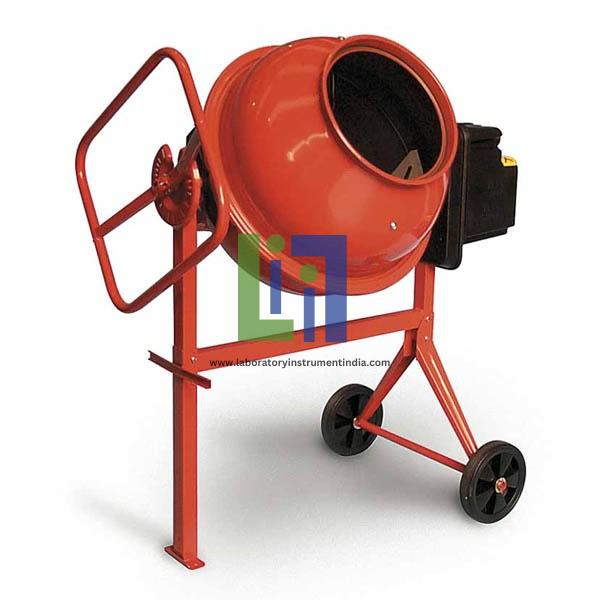

Suitable for field mixes of low medium strength concrete.
Drum volume: 125 liters
Power supply: 230V 1ph 50 Hz - 0,3 HP
Yield: 75 liters of concrete
To upgrade or complete your concrete or mortar compression and flexure testing machine. Stand Alone Control Console Connected to a load frame, it provides tests throughout all phases data acquisition, display, processing, saving of the test dates, software for the print out of results and certificate.

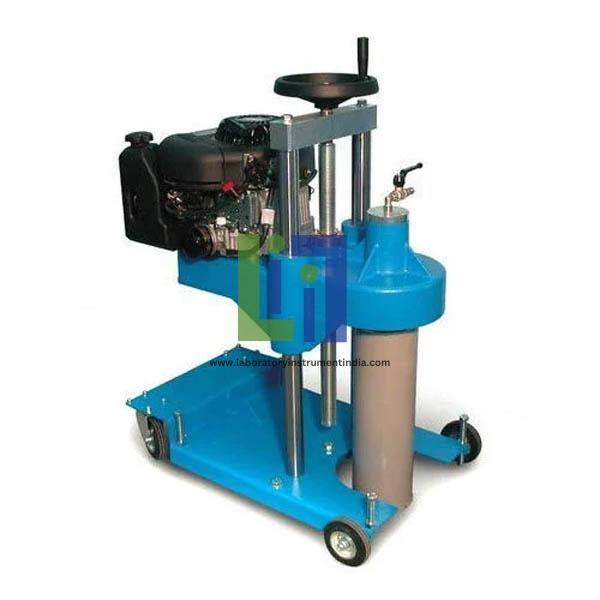

....Pavement core drilling machine 12,5HP 4-stroke petrol engine activated by a petrol engine 12,5 HP power 4-stroke Briggs & Stratton model.
....The new PC based and touch screen control unit developed by department to offer a new generation of control units for the management of semi-automatic and fully automatic compression, flexural, and splitting tensile tests on concrete and cement specimens.
Main Features:
Modular structure
Pc based control unit
No limits memory
Touch screen display with icons Internet and Intranet connections for remote technical assistance.

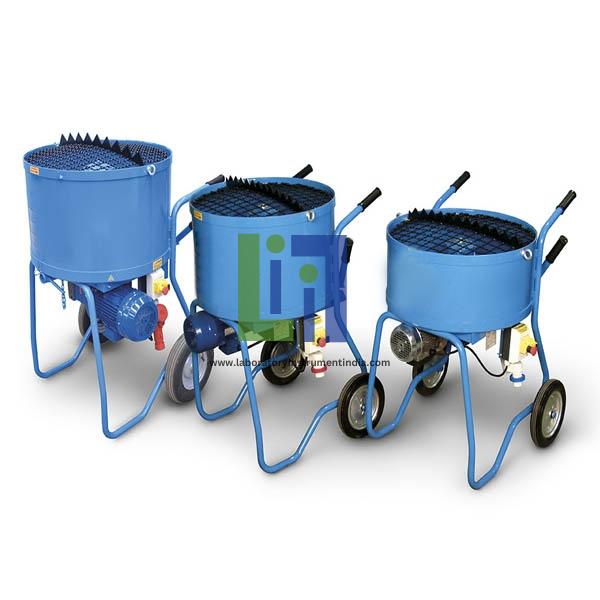

Yeld per mixture lt. 80
Motor power 1,8 KW
Cylinder dimensions (dia x h) 70x43 cm
Cylinder capacity lt. 150

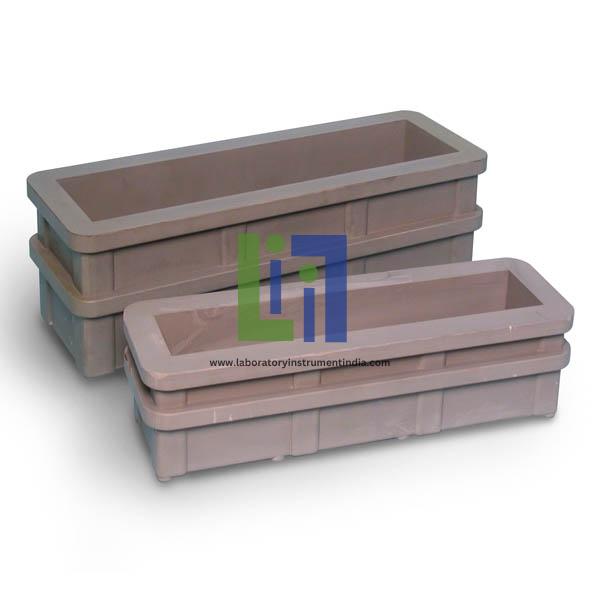

Beam Mould 150x150x600 MM, with "X" reinforced bands on the base and upper double reinforced walls and corners.
....Cube Mould standard reinforced band, 150 mm side.

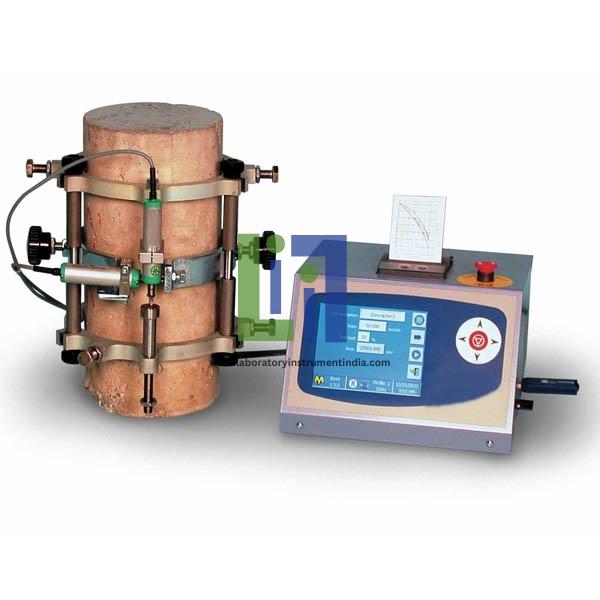

....Compressometer Extensometer consists of a central ring for the diametrical extension measure to be fixed on the compressometer. To measure both axial deformation and diametrical extension of cylinder specimens dia. 150x300mm, 160x320mm, 8x 12 under compression stress, by determining the elastic modulus.

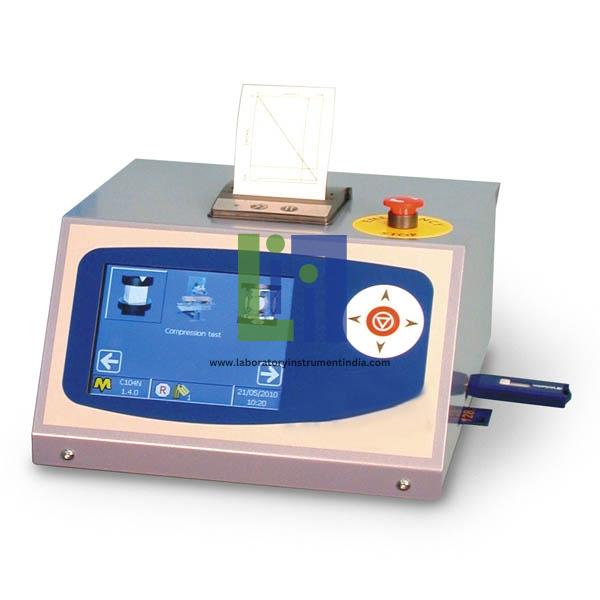

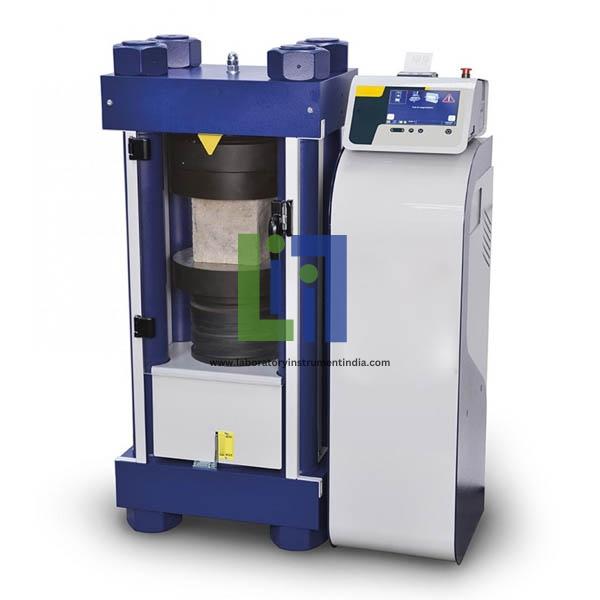

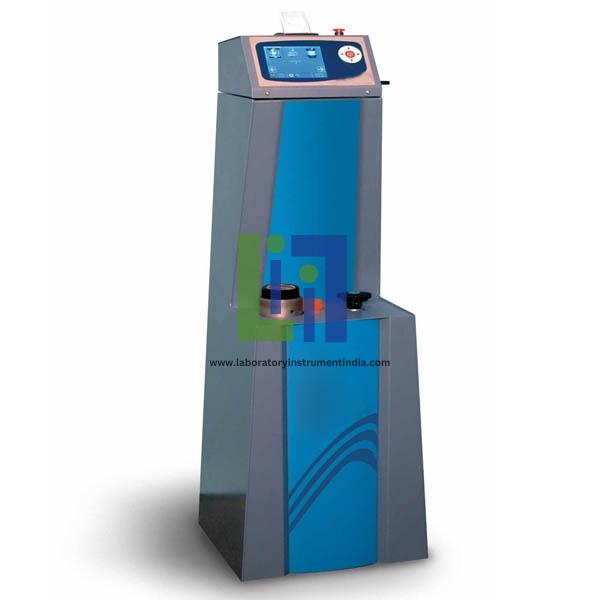

....Designed with the latest technology, an innovative PC-likeTouch Screen system, employed to control and manage all sorts of automatic testing machines. Multi piston electric pump with variable flow driven by a microprocessor. To update or complete your compression and flexural testing machine on concrete and mortar.

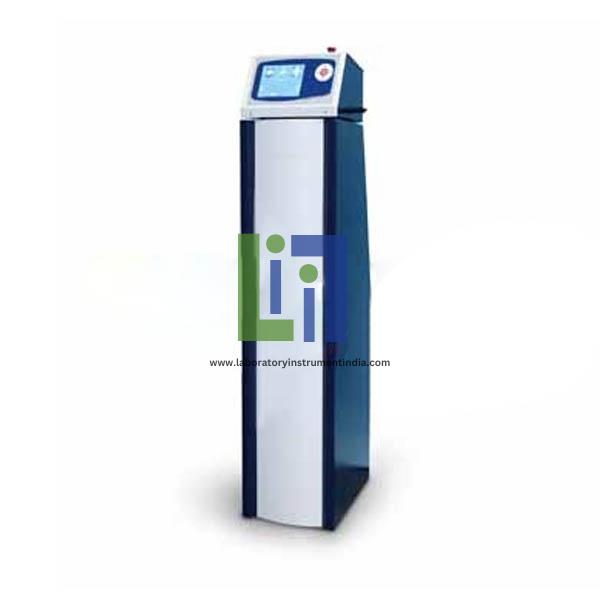

Eight channels controlled unit for a fully automatic execution of the test.
Data acquisition system.
The machine comprises.
The mixers are equipped with a manually controlled discharge opening situated on the bottom part of the pan, for direct unloading of the mixture into a wheelbarrow or suitable container. Used to prepare concrete specimens or mixtures, these pan type mixers ensure a uniform efficient fast mixture action. The pan and the mixing gears have big thickness ratio, the gears are from hardened and rectified steel, and the motor reducer is in oil-bath with Gleason conical coupling. They are of easy and practical utilisation suitable for laboratory and field purposes. The mixing blades and paddle can be adjusted in height; they are manufactured from special quality hardened steel to resist wear.
....Yeld per mixture lt. 55
Motor power 1,1 KW
Cylinder dimensions (dia x h) 70x30 cm
Cylinder capacity lt. 100
The appliance includes:
Electronic measuring system
Hydraulic system
Data acquisition and processing software.

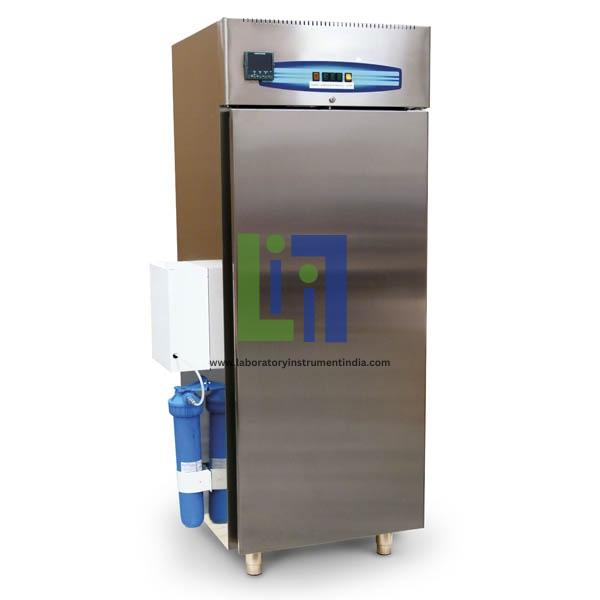

Climatic cabinet 1200 litres cap. With an internal capacity of 1200 litres.
Supplied complete with 6 adjustable shelves.
Flexural open sided frame 150 KN capacity complete with pressure transducer used in conjunction with a compression machine equipped with digital control units.

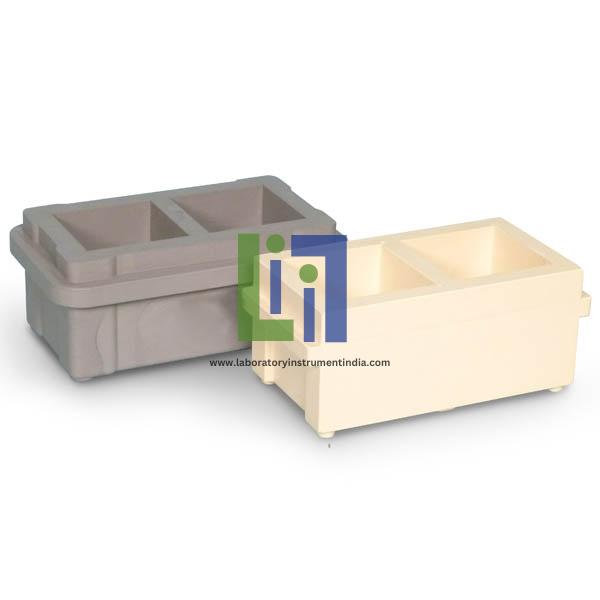

....Cube Mould 100 MM Side two gangs with reinforced corners and band on the walls.

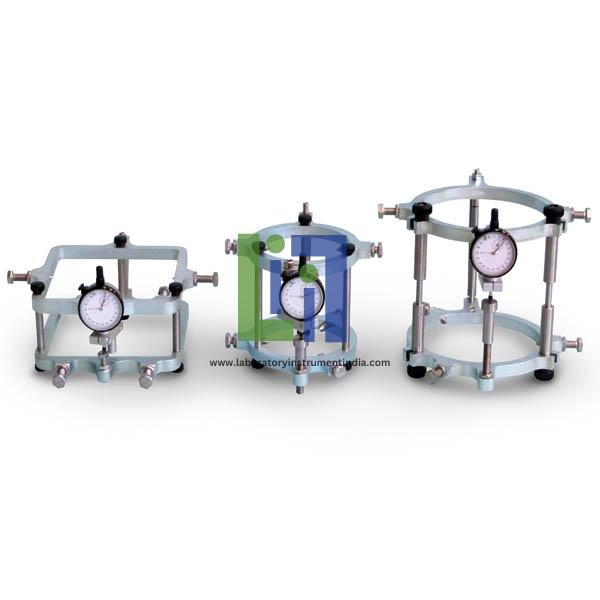

....Compressometer For Cylinders dia. 100x200mm; dia. 112,8x220mm; dia. 4x8.
....Made from steel sheet, zinc coated to prevent it from corrosion. The tank can accommodate up to 64 cubes 150mm side, or up to 48 cubes 200mm side. Complete with base rack and stopper for an easy water discharge. Supplied without thermostat heating system, to be ordered separately.

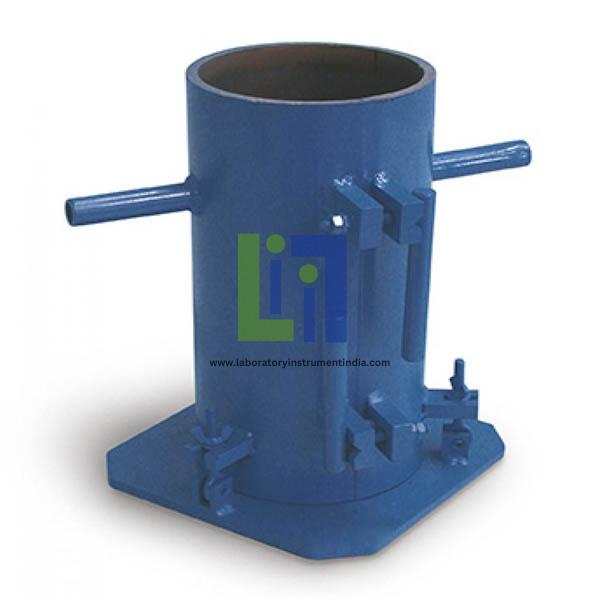

....Foreseen of lateral hinges for total opening and fast clamping system with inbuilt revolving screw. Steel made, galvanized finishing against corrosion. Complete with base they are easy to use with practical and fast demoulding recommended for field use.

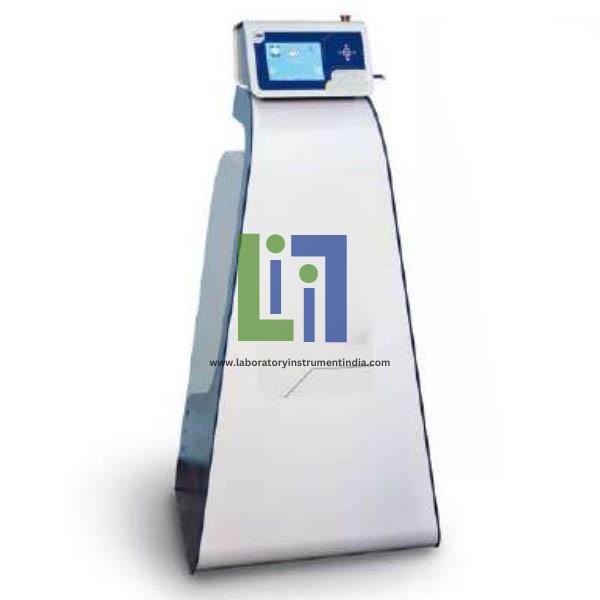

....Electro Hydraulic loading and control system consisting of:
Upper attachment for steel frame cross-mean coupling.
Spherical seat fixed to the ram for an uniform loading.
Double action alloy steel ram + cylinder. The ram is ground.
This rugged, compact and por table machine with vertical screw feed, is used for pavement core sampling where it is not easy to get electrical power.
Petrol engine 5 HP power, 4-cycle Briggs & Stratton model.

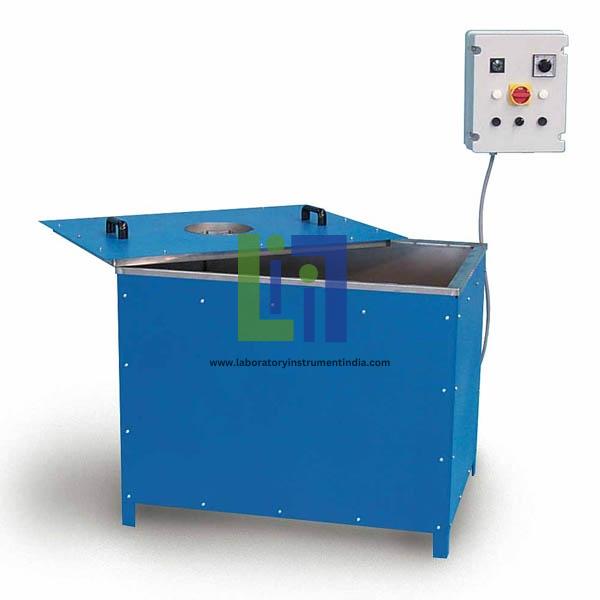

Accelerated Concrete Curing Tank can hold up to 16 cubic 150 mm.side specimens, or 16 cylindrical dia.150 mm.specimens, or 8 cubic 200 mm.side specimens.
Accelerated Concrete Curing Tank comprises a fully insulated double wall tank with cover, inside all from stainless steel, outside from steel painted sheet with an intermediate layer of insulating mineral wool. Accelerated Concrete Curing Tank has been designed for accelerated concrete strength curing.
The test consists essentially in curing the concrete specimens with water heated by 3 electric elements of 1500W each.
The separate control panel is provided with a thermo regulator, timer, pilot lights, main switch. Temperature range: from ambient to 100 °C.

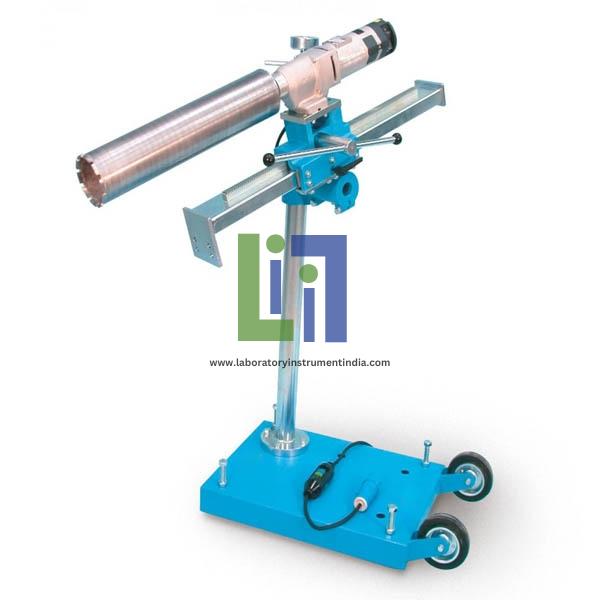

Comprising:
Universal drilling frame complete but without electric motor
Electric Motor Complete
Coring angle: 0 to 360°
The excursion group is rectified to assure a very soft and accurate drilling movement. The excursion is 550 mm. The height of the vertical column is 1000 mm and it is pre-built for extension column connection. Electric motor at three speeds: 670, 1140, 1580 rpm with speed reducer, provided of friction device and switch to CE Safety Directive.
Three speed electric motor with friction device
Rectified excursion group
Connection to coolant water supply
Robust, compact, wheels mounted
Coring angle: 0 to 360°
Steel Cylinder Mould Dia. 159,6 X 320 Mm

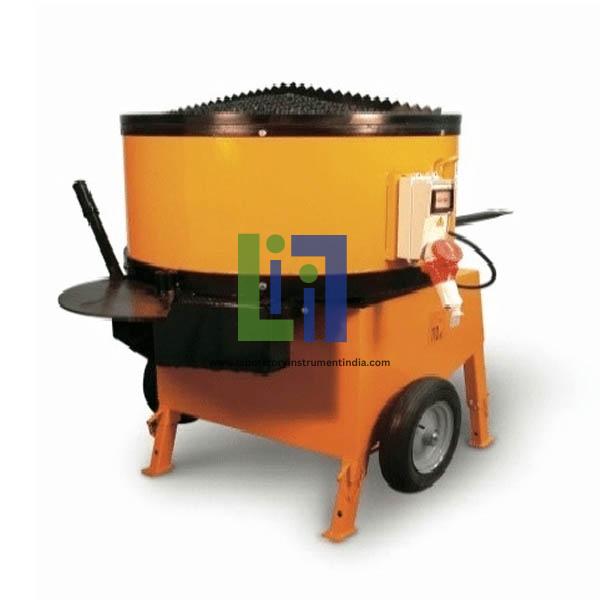

....The pan is easily removable by means of a trolley. The blades are hardened against wear. This multiflow mixer absorbs fewer air during mixing, requires shorter mixing time and grants a perfect homogeneity in mixtures having a low water cement ratio.

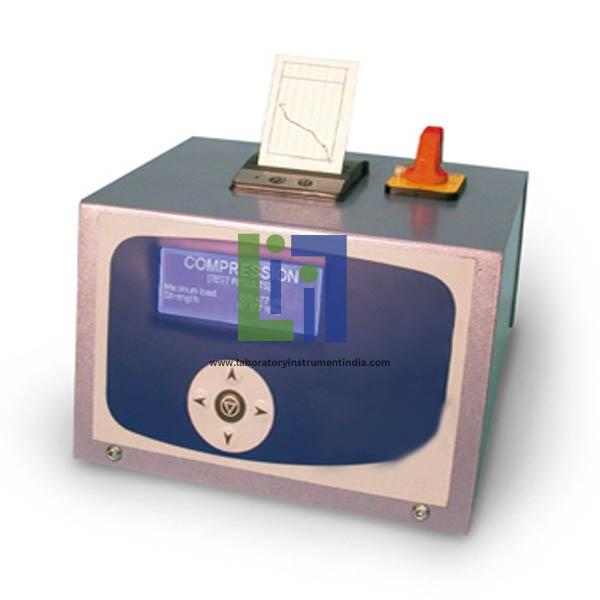

....Two channels computerised graphic display system to control and manage all sorts of semi-automatic testing machines, processing, printing and saving the test data and certificates, for acquisition, display, with software for remote control from PC.

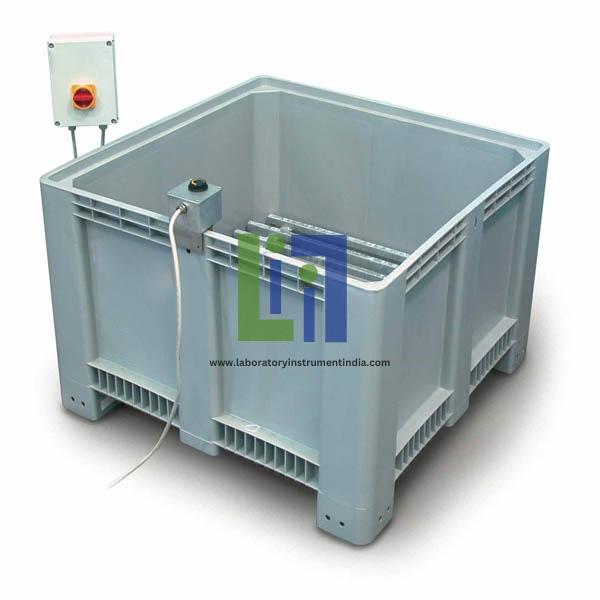

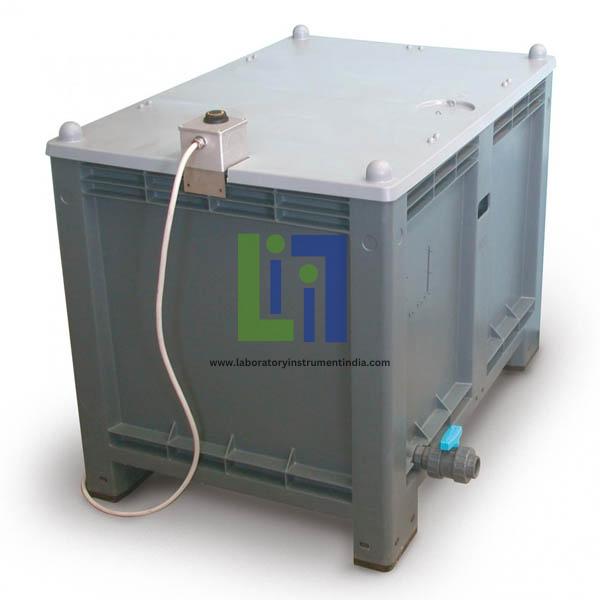

....Made from extremely robust and stable polyethylene, complete with base rack. Curing tank 650 liters capacity, heavy plastic. Supplied without thermostat heating system to be ordered separately.
....Flexural frame 150 KN capacity complete with dial gauge, used in conjunction with compression testing machine dial gauge reading.
....Water discharge cock incorporated into the tank
....Concrete flexural machine 150 kN hand operated 1 gauge to perform flexural tests on concerte beam specimens max. dimensions 150x150x750 (600) mm.

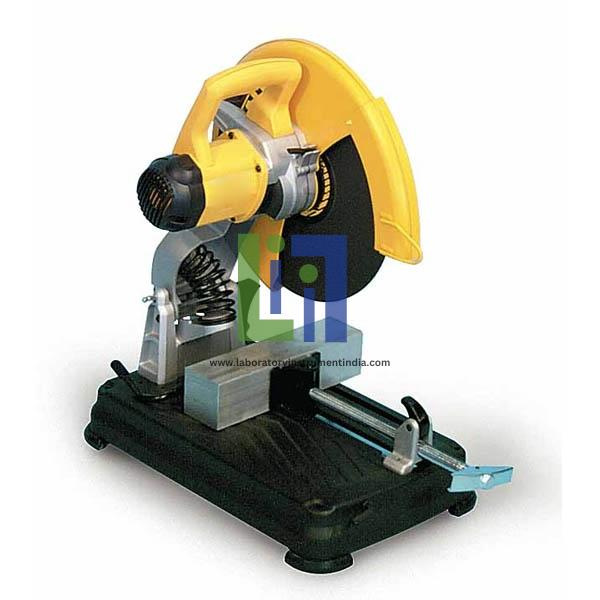

....The machine accepts blades up to dia. 350 mm
Blade rotation speed: 3900 rpm
Shear capacity: 120 mm
Power supply: 230 V 1ph 50 Hz 2000 W
Supplied complete with abrasive blade dia. 350 mm

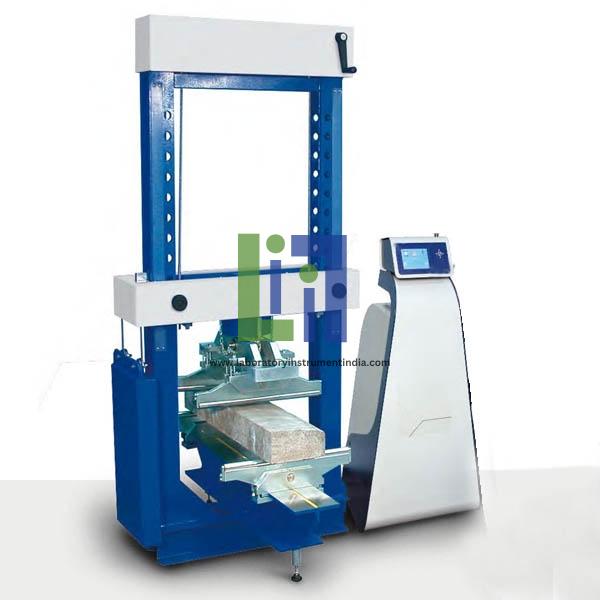

Concrete flexural machine 150 KN motorized with control unit to perform flexural tests on concrete beam specimens max. dimensions 150x150x750 (600) mm.

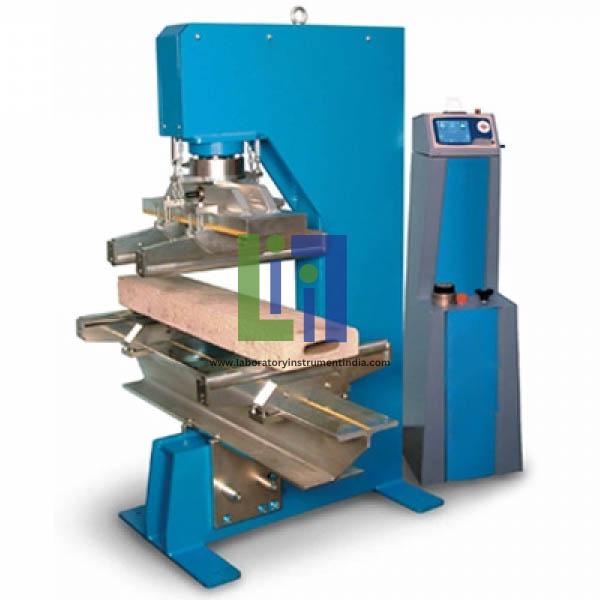

....Concrete flexural machine 150 KN open sided frame motorized with control unit fully automatic model to perform flexural tests on concrete beam specimens max. dimensions 200x200x800mm, kerbs, tiles, slabs, masonry units, flat blocks, flagstones, and any type of material having max. size 600x250 mm (lower rollers max. length 1325 mm).

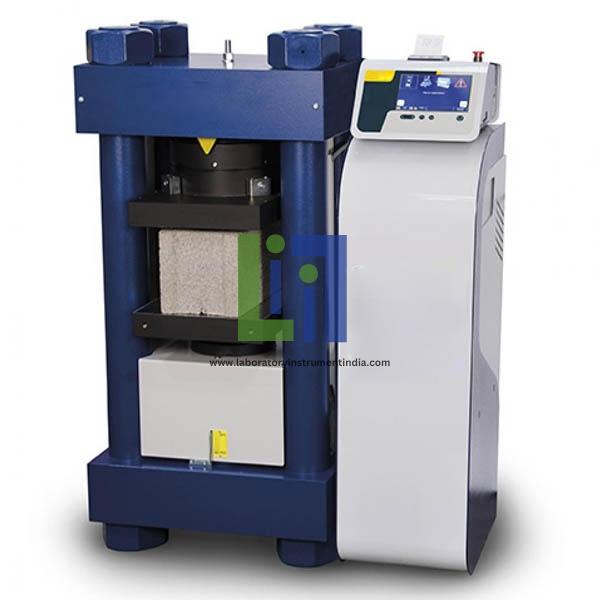

....Compression testing machine 5000 KN motorized with control unit (semi-automatic model), to test cubes up to 300 mm side and cylinders up to dia. 250x500 mm.

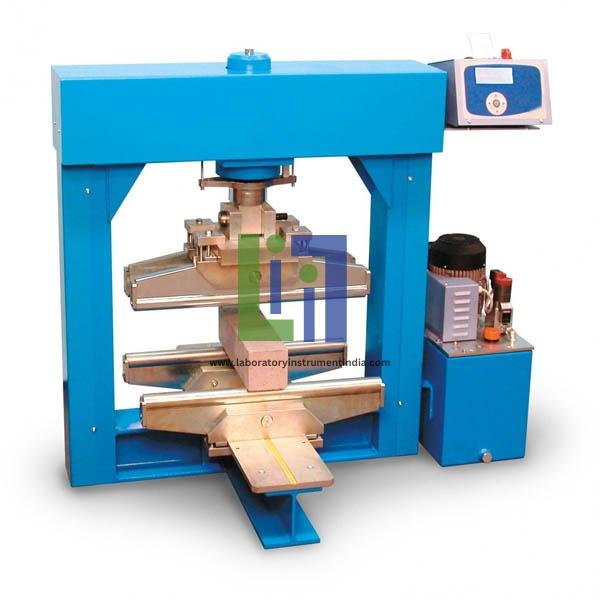

....Concrete flexural machine 200 kN, high stiffness with control unit (semi-automatic model), to perform flexural tests on concrete beam specimens max. dimensions 200x200x800mm, kerbs, tiles, slabs, flat blocks, flagstones, masonry units, and any type of material having max. size 600x250 mm (lower rollers max. length 1325 mm).

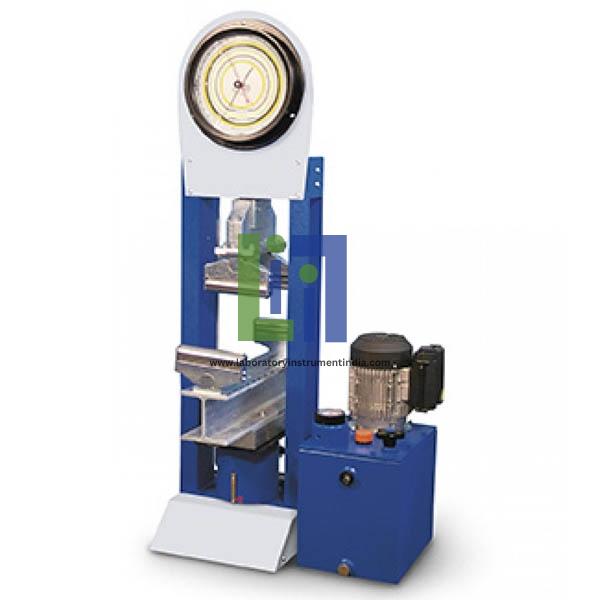

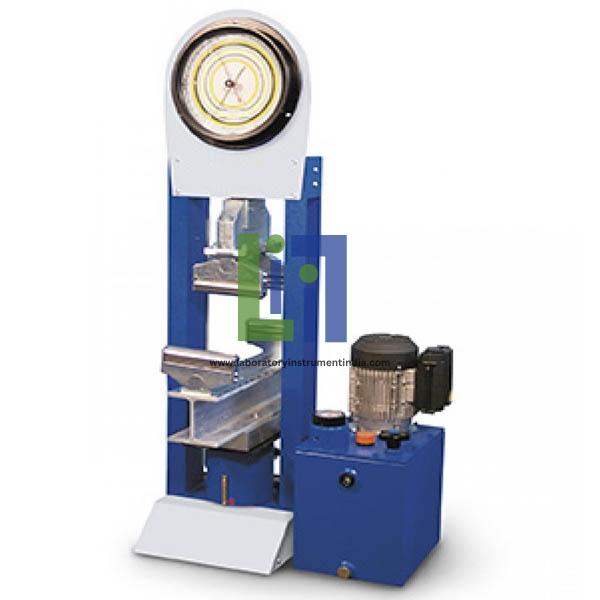

....Concrete flexural machine 150 KN motorized, 1 gauge to perform flexural tests on concrete beam specimens max. dimensions 150x150x750 (600) mm.
....Concrete flexural machine 150 KN motorized with Servo-Plus evolution unit fully automatic model to perform flexural tests on concrete beam specimens max. dimensions 150x150x750 (600) mm.

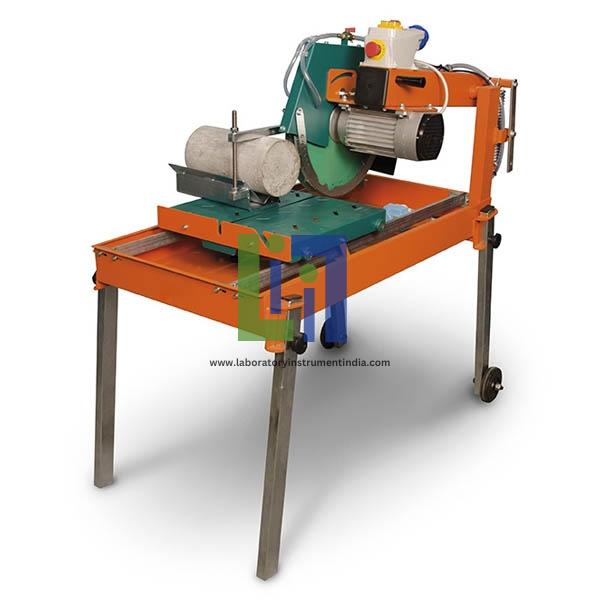

....Specimen cutting machine with sliding supports
Useful cutting height: 130 mm
The machine accepts blades up to dia. 400 mm
Blade rotation speed: 2800 rpm
Supplied without blade
Compression testing machine 5000 KN motorized with control unit (fully automatic model), to test cubes up to 300 mm side and cylinders up to dia. 250x500 mm.

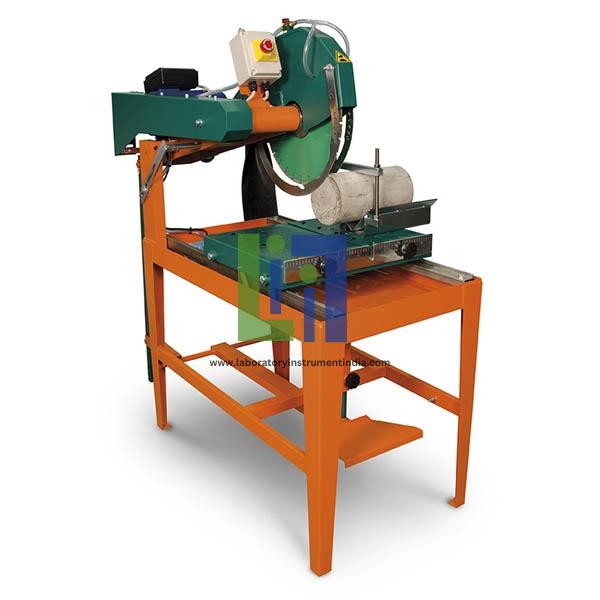

....Specimen Cutting Machine can accept blade having max. dia. 600 mm.
Power supply: 400 V 3ph 50 Hz 5,5 Hp

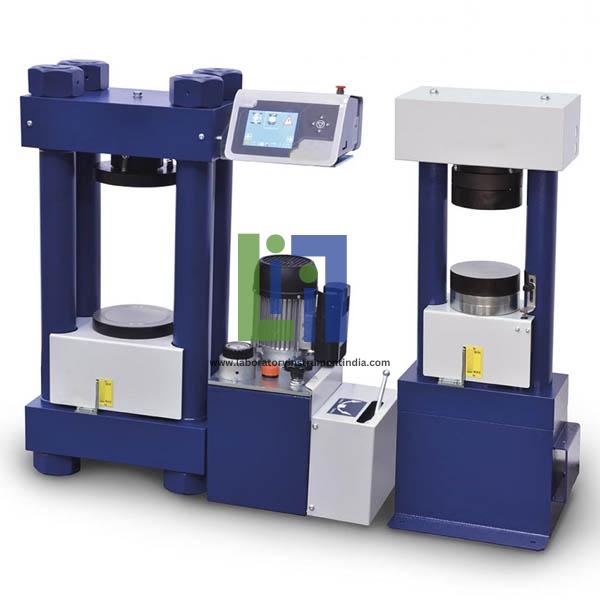

Compression Flexural frame on mortar specimens, dual range:
0-15 kN for flexure tests complete with two pressure transducers used along with a digital concrete compression machine
0-250 kN for compression tests.
Power supply: 230 V 1ph 50 Hz 3 Hp

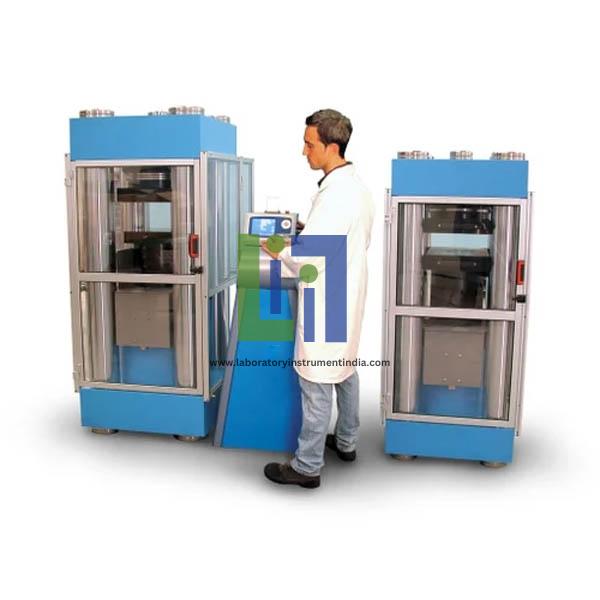

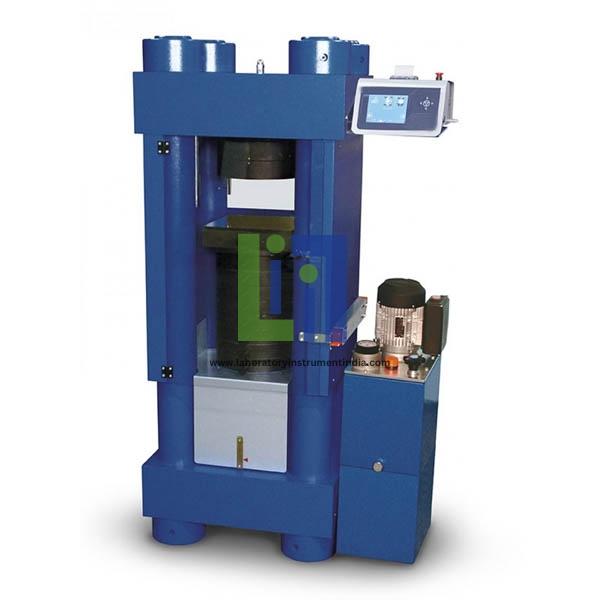

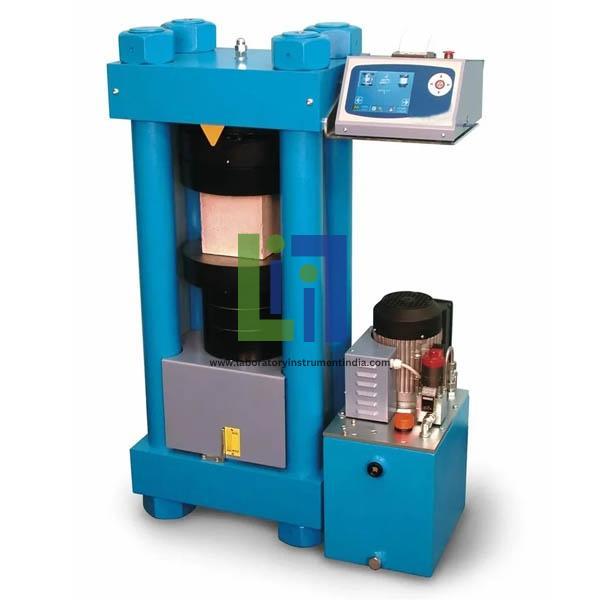

....Concrete compression machine 5000 KN high stability with control unit the ideal solution for central and research laboratories to test high strength specimens explosive samples rock and ceramic samples.
....Concrete flexural machine 200 KN high stiffness, with control unit (fully automatic model) to perform flexural tests on concrete beam specimens max. dimensions 200x200x800mm, kerbs, tiles, slabs, masonry units, flat blocks, flagstones, and any type of material having max. size 600x250 mm (lower rollers max. length 1325 mm).
....Concrete flexural machine 150 kN open sided frame, motorized with control unit (semi-automatic model) to perform flexural tests on concrete beam specimens max. dimensions 200x200x800mm, tiles, slabs, masonry units, flat blocks, flagstones, kerbs, and any type of material having max. size 600x250 mm (lower rollers max. length 1325 mm).

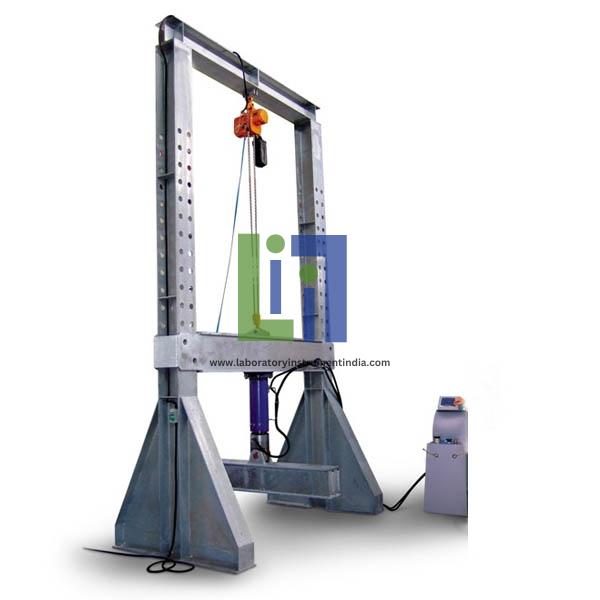

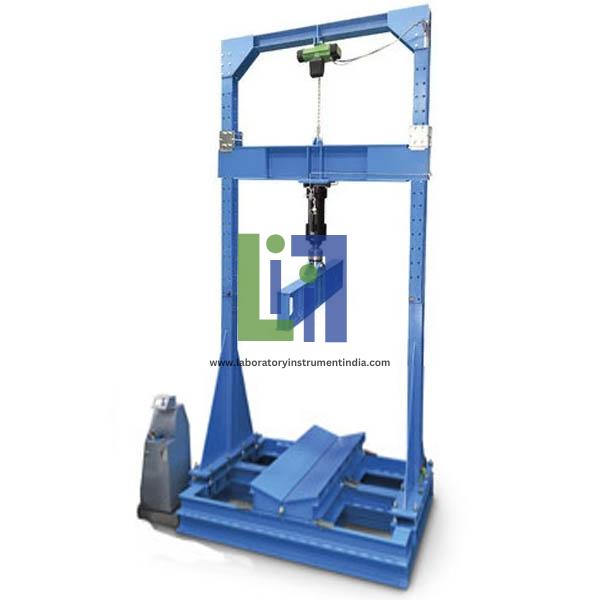

....Designed and manufactured to test concrete sewer and drain pipes used in drainage works, water and irrigation supply systems etc.
Concrete Pipe Testing Machines is composed of two parts:
Testing frame, steel made
Electro-Hydraulic loading and control system.
Load is measured by a high accuracy electric strain cell, eliminating the pistons weight and friction.

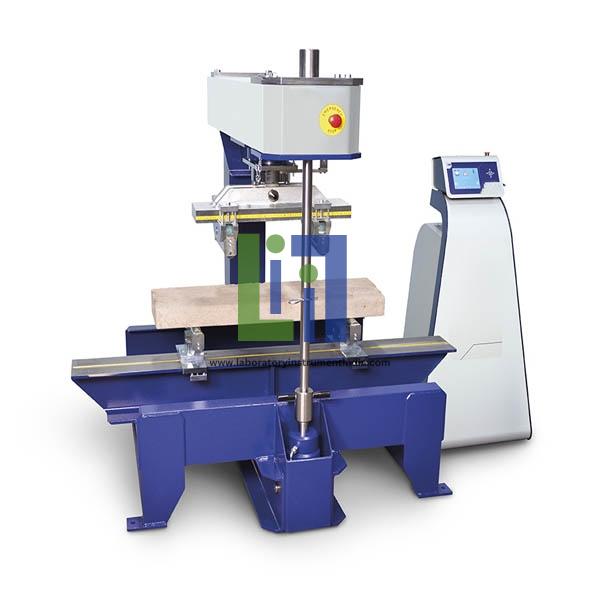

Multipurpose high flexibility testing machine.
C-shaped open frame for an easy and fast positioning of the specimen between the rollers.
The frame is closed by a hydraulic vertical rod, granting high rigidity.
Maximum vertical daylight between upper/lower rollers: 263 mm
Horizontal clearance (between uprights): 1040 mm
Maximum capacity: 320 KN
Ram travel: 110 mm
Graduated scales are foreseen to get easy rollers adjustment.
Simple action piston with counterweights to optimize frictions.
Possibility to easily place in the centre one upper roller for centre point loading.

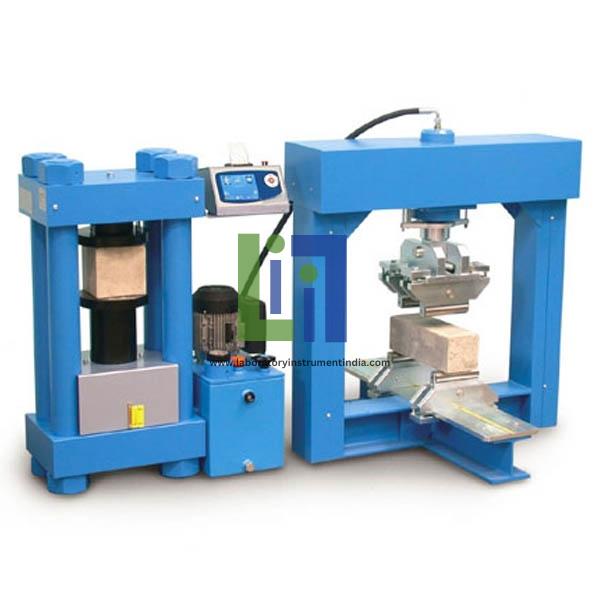

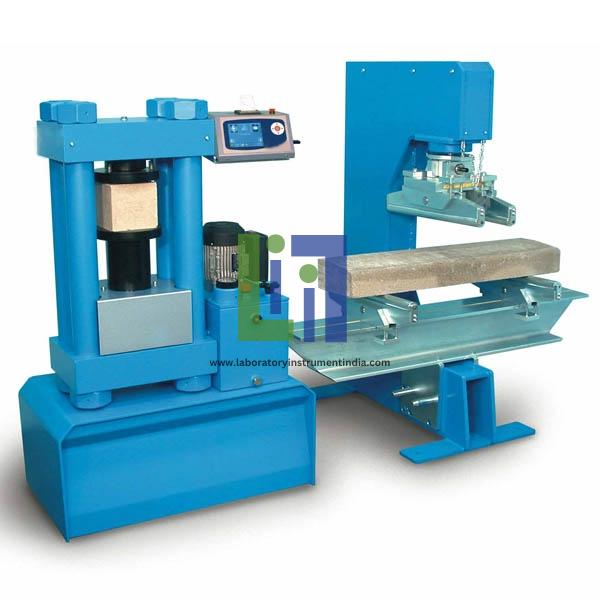

This two frames Group offers the considerable advantage to perform compression tests on concrete cube, cylinder and block specimens flexural tests on concrete beams and by using suitable accessories, to perform also the following tests: Compression on portions of 40.1x40x160 mm mortar broken in flexure. Flexural high stiffness frame 200 KN capacity complete with pressure transducer, used in conjunction with a digital compression machine.

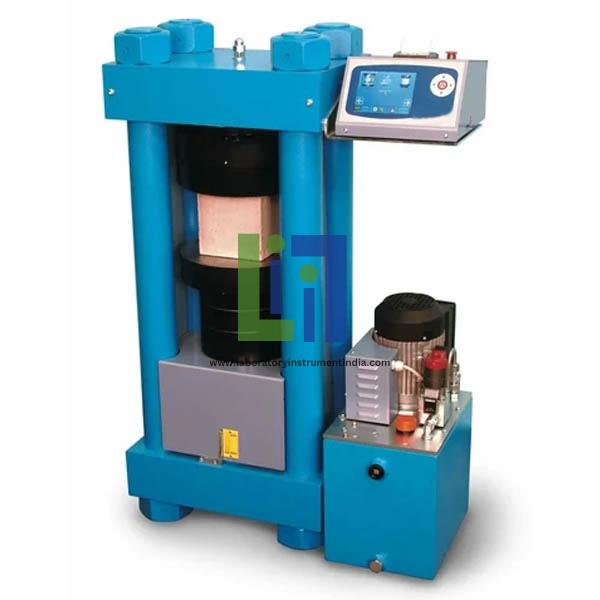

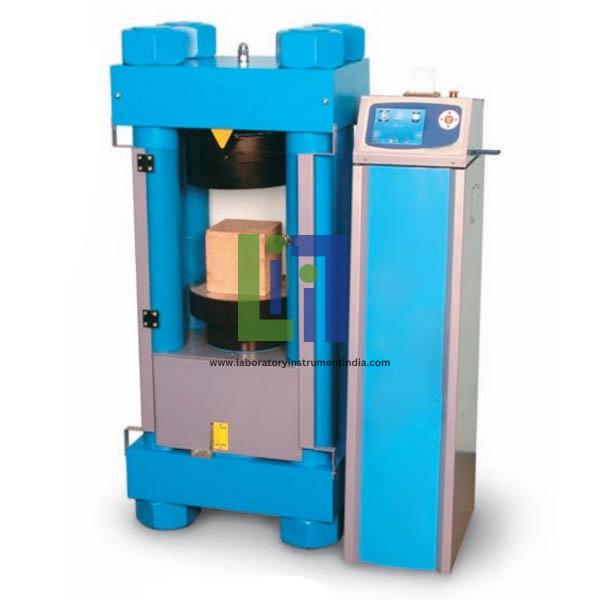

....Compression testing machines 3000 KN motorized with control unit fully automatic model high stability, to test blocks max. 500x300 mm, cubes up to 200 mm side and cylinders up to dia. 160x320 mm.

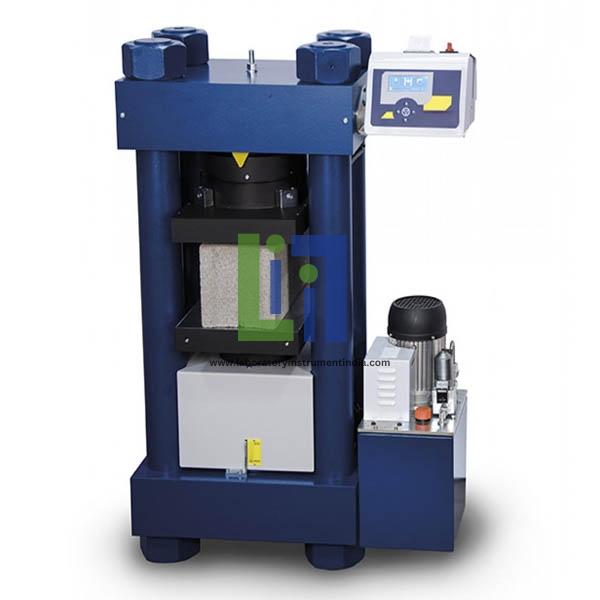

....Compression testing machine 3000 KN motorized 2 gauges to test blocks max. 500x300 mm, cubes up to 300 mm side and cylinders up to dia. 160x320 mm

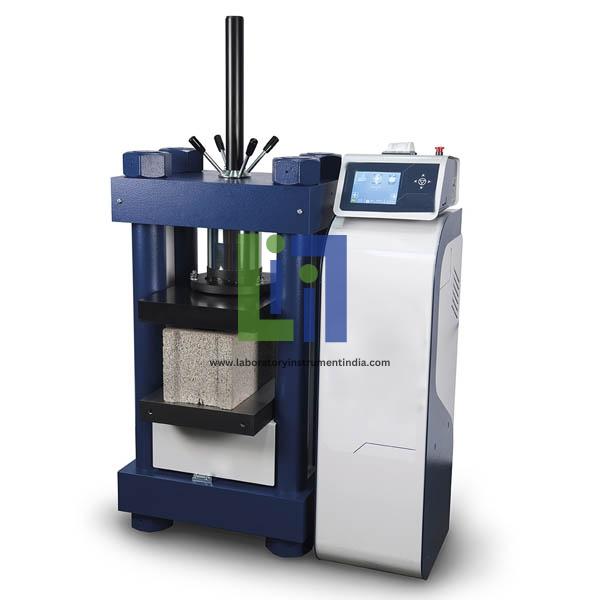

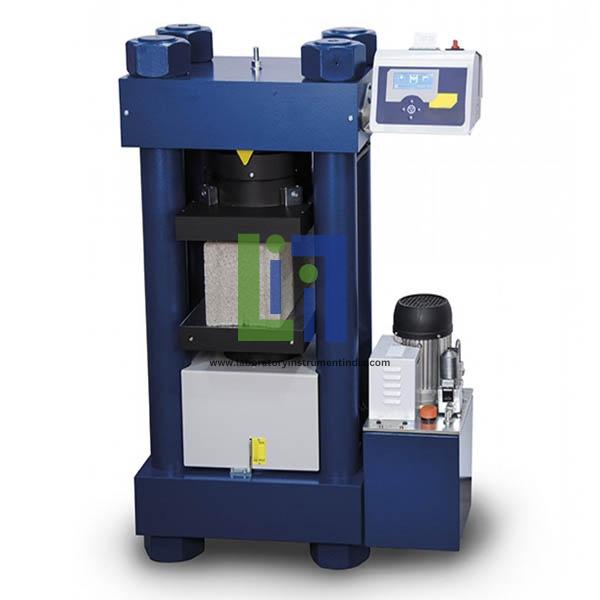

....Compression testing machine 2000 KN motorized with control unit high stability to test blocks max. 500x300 mm, cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
....Compression testing machine 2000 KN capacity motorized with Servo-Plus evolution control unit to test blocks max. 500x300 mm, cubes up to 300 mm side and cylinders up to dia. 160x320 mm.

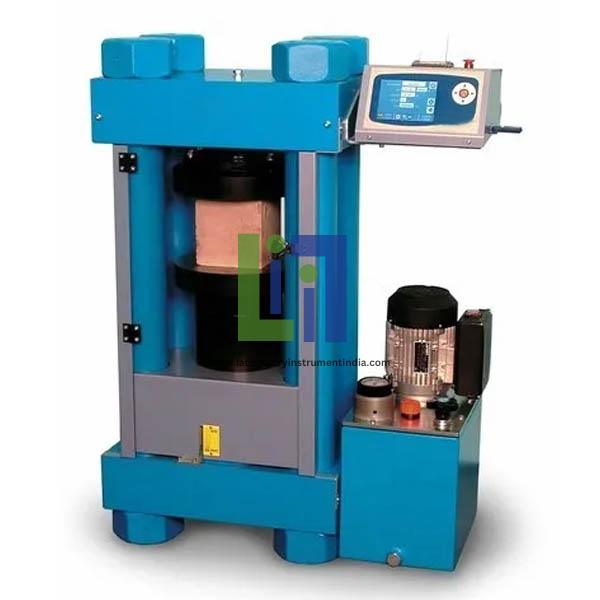

....Compression testing machines motorized with control unit (semi-automatic model) to test cubes up to 200 mm side and cylinders up to dia. 250x500 mm.

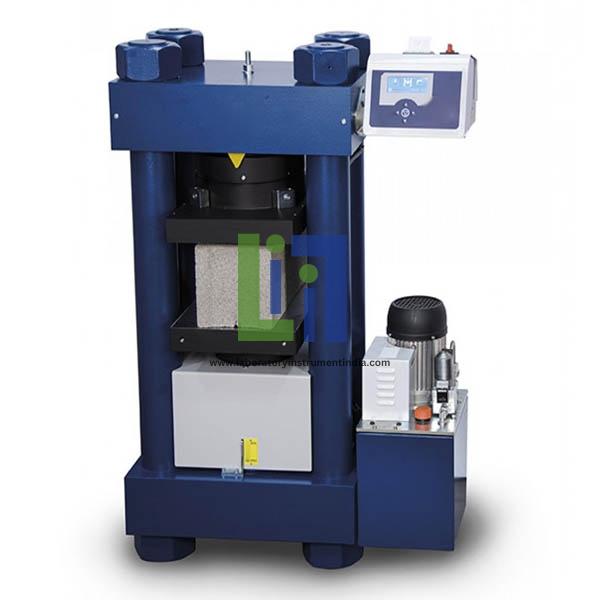

....Compression machine 3000 KN motorized with control unit, to test blocks max. 500x300 mm, cubes up to 300 mm side and cylinders up to dia. 160x320 mm

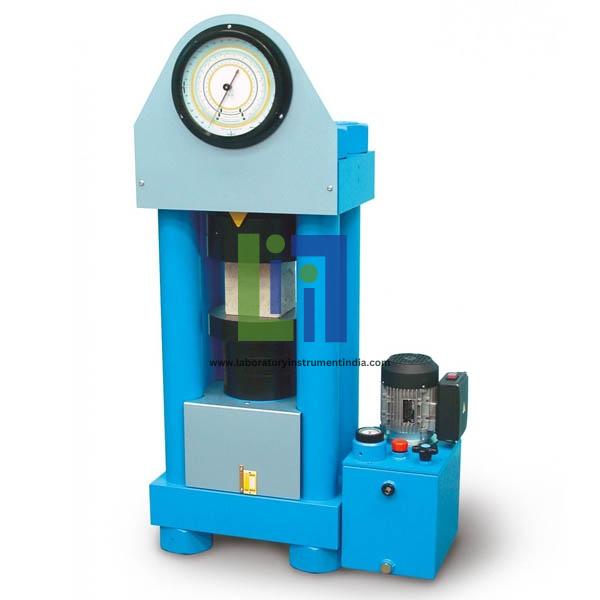

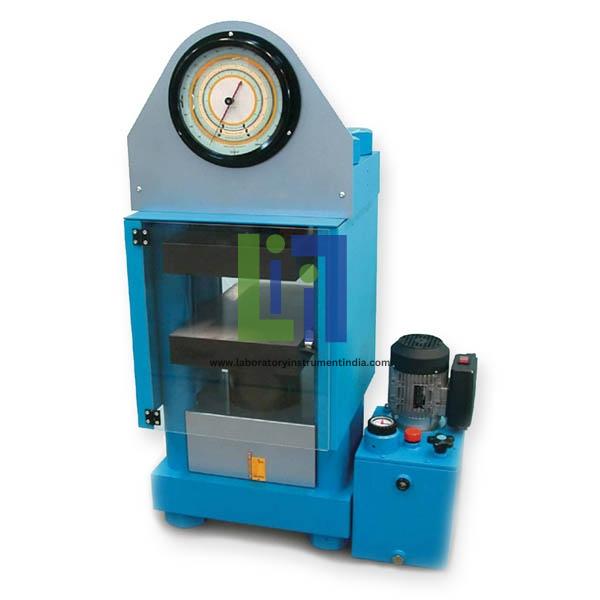

....Compression machine 3000 KN motorized 1 gauge to test cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
....Compression machine 2000 KN motorized 1 gauge to test blocks max. 500x300 mm, cubes up to 300 mm side and cylinders up to dia. 160x320 mm.
....Compression testing machine 2000 kN capacity motorized with control unit (semi-automatic model), to test cylinders up to dia. 160x320 mm and cubes up to 150 mm side.
....Compression machine 3000 kN, motorized with control unit, to test cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
....Compression testing machines 3000 KN motorized with control unit semi-automatic model, high stability, to test cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
....Compression machine 1500 KN motorized 1 gauge, to test cubes up to 150 mm side and cylinders up to dia. 160x320
....Compression machine 2000 KN high stability, motorized with control unit to test blocks max. 500x300 mm, cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
....Compression testing machines 2000 KN Capacity tested for high stability to test cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
....Compression machine 3000 KN high stability, motorized, with control unit to test blocks max. 500x300 mm, cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
....Compression testing machines 2000 KN capacity to test cubes up to 150 mm side and cylinders up to dia. 160x320 mm.
....It is possible to place in the centre only one upper roller for centre point tests. To perform the flexural test, Flexural Device On Concrete Beams has to be used with a concrete compression machine foreseen of low capacity measuring range. Flexural Device for two point and centre point tests on concrete beams 100x100x400/500 and 150x150x600/750 mm Equipped with two lower rollers, one of them articulated, and two upper rollers for third point tests.
....Compression machine 1300 kN motorized with control unit, to test cylinders up to dia. 160x320 mm and cubes up to 150 mm side.
....Pumping unit, motorized, identical but equipped also of a three way hydraulic valve to activate, alternatively, two testing frames. Supplied complete.
....Capacity: 5000 KN
Dimensions dia. x height: 180x200 mm
The instrument foresees three memorized cycle verification program composed of ten measurement each. This user friendly menu driven digital display, connected to load cells allows to perform an accuracys verification of the loads measured from machines under control and it allows to produce the relative certificate.
At the end of the test the unit automatically elaborates the stored value and displays:
Average measured load
Accuracy in %
Effective applied load
Repeatability
Measured load.
Table Dimensions: 600x400 mm
Weight Kg 60
Poker Vibrator, portable, petrol operated.
Motor, 4-stroke, 1,6HP, 35,8cc
Flexible shaft: 2 metres long.
Frequency: 10000 vibrations/min.
Tip dimensions: 25 mm dia. by 250 mm long.
Supplied complete with knapsack.
Compression testing machines 1500 kN capacity to test cubes up to 150 mm side and cylinders up to dia. 160x320 mm.
....The guards are both on front and back sides. Machines with block platens 3000kN and high stability with block platens 3000kN. Safety guards to CE Safety Directive, manufactured from highly resistant transparent polycarbonate material, complete with hinges and lock.
....Designed to test concrete sewer and drain pipes used in drainage works, water and irrigation supply systems etc.
The machine is composed of two parts:
Steel Testing Frame.
Electro-Hydraulic loading and control cabinet.
Holder For Transducer, to be fixed to the high stiffness frame with square base.
....Splitting tensile test device to perform tests on cylindrical specimens.
....Splitting Tensile Test Device For Concrete Block Pavers is directly fixed on the compression platens of the block testers having 2000 kN or 3000 kN capacity. Splitting tensile test device to perform tests on concrete block pavers having max. dimensions 300 x 500 mm, and for tests on concrete cube specimens 100, 150, 200 mm, and any type of block and prismatic specimens.
....Compression machine 1300 KN hand operated 1 gauge to test cylinders up to dia. 160x320 mm and cubes up to 150 mm side.
....Splitting Tensile Device for self blocking pavers and cubes.
Dimensions 300x500 mm.
Concrete Flexural And Transverse Machine 150 KN with control unit to perform flexural tests on concerte beam specimens max. size 200x200x800 mm, kerbs, tiles, slabs, masonry units, flat blocks, flagstones, pipes, and any type of material having max. size 550xh550 mm.
....Splitting Tensile Test Device to perform tests on concrete cube specimens 100 and 150 mm and on concrete block pavers.
....The equipment consists of a steel tamper mounted on a rotating coupling which is fixed to the upper part of the flexural testing machine to apply a flexural strength on three points on the concrete kerb, without any torsional stress.
....Device With Central Screw can be foreseen on all models of concrete compression machines, except High Stability models. Recommended solution for machines equipped with big sized platens. Very practical to adjust the light between the compression platens of a machine, according to the height of the specimen to be tested.
....The guards are both on front, back and lateral side and are easily/quickly fixed to the machine with hooks. Fragment guards to Safety Directive, manufactured from highly resistant transparent polycarbonate material. Machines 3000kN and high stability 3000kN.
....The lower compression platen of the testing machine is marked with a serie of concentric circles to facilitate the correct centering of the specimens. For cubes 100 and 150 mm side and cylinders dia.100 and 150 mm. Auto-Centering Device, to be used with compression machine having platen dia. 287 mm. However to grant a rapid and accurate centering of concrete cube and cylinder specimens, this Auto-Centering device is recommended.
....Kit Of Four Handles To Lift The Lower Platen, making the positioning of distance pieces easier.
....Upper And Lower Compression Platens complete with ball seating, dimensions 510x320x55 mm for tests on blocks.
....Upper Compression Platen With Spherical Seat, to obtain an increased vertical clearance of the testing chamber, to fix on the testing machine.
....
