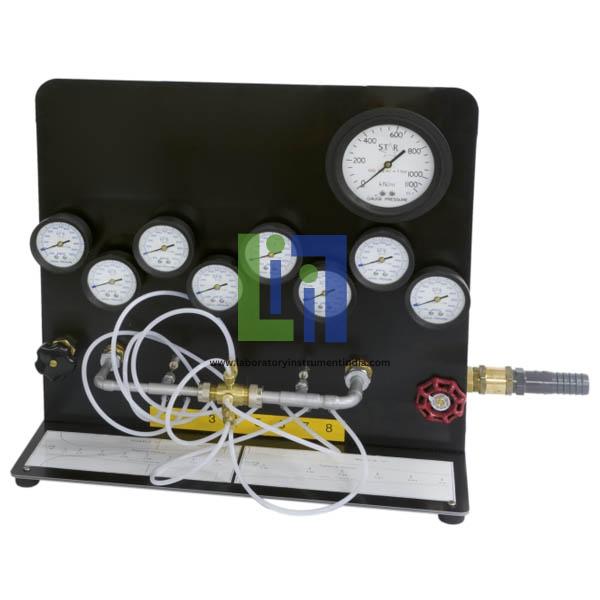

Nozzle Pressure Distribution Module

Code: LBNY-0005-1320001

All three nozzles have axial static pressure tappings allowing the approach, throat and divergent section pressures to be measured. The variation of pressure ratio and mass flow may be investigated for all three nozzles.…

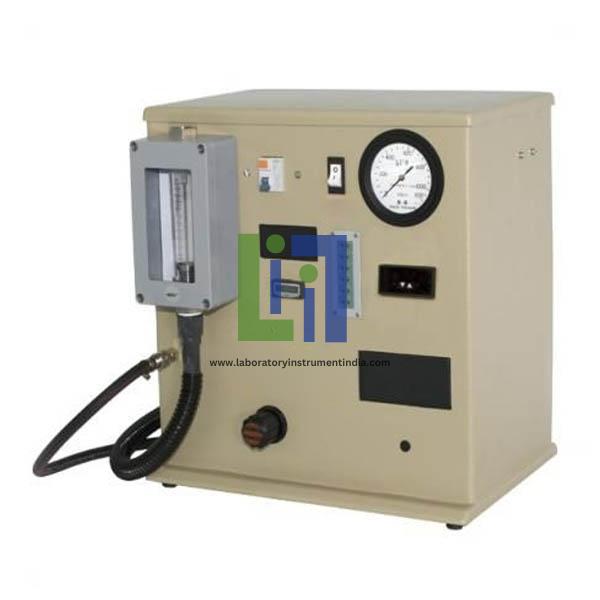

Compressible Flow Base unit

Code: LBNY-0005-1320002

The unit provides common instrumentation for all of the options. Specialized instruments are included as required with the modules. The main unit consists of an instrumentation and control console that supplies a variabl…

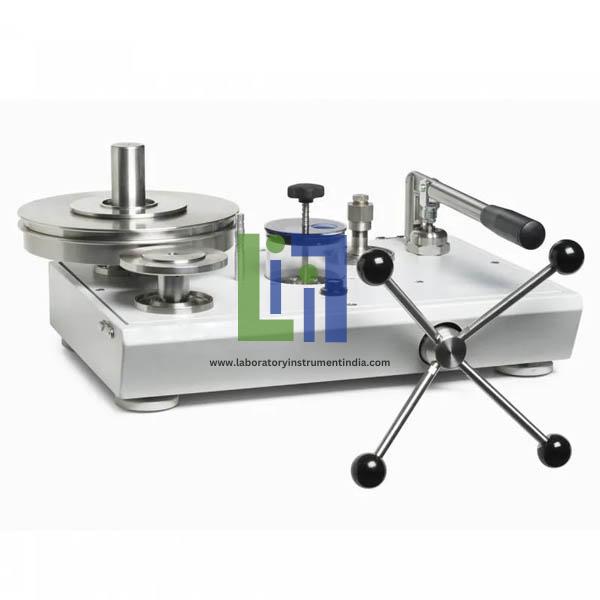

Deadweight Tester

Code: LBNY-0005-1320003

A simple deadweight tester with weights and a bourdon tube pressure gauge with a clear front allowing the mechanism to be viewed. The unit has an optional pressure transducer available allowing the concept of electronic …

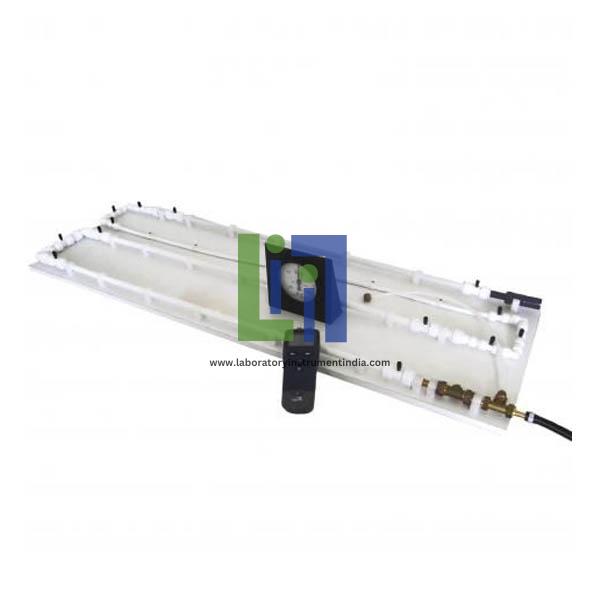

Compressible Flow Pipe Friction Module

Code: LBNY-0005-1320004

The pressures, temperatures and air flow rate are recorded by a combination of instrumentation on the Compressible Flow Range base unit and the optional module. A digital hand held manometer is supplied. A series of fou…

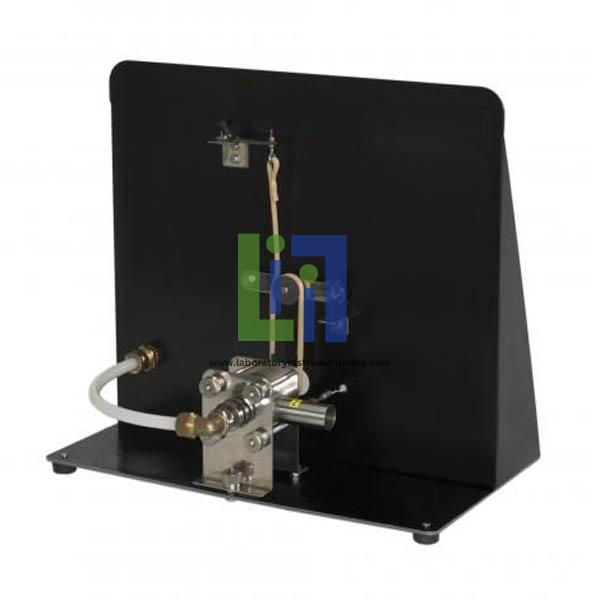

Reaction Turbine Module

Code: LBNY-0005-1320005

Inlet and outlet air pressures, temperatures and air flow rate, turbine torque and speed are recorded by a combination of instrumentation on the Compressible Flow Range base unit and the optional module. Experimental Re…

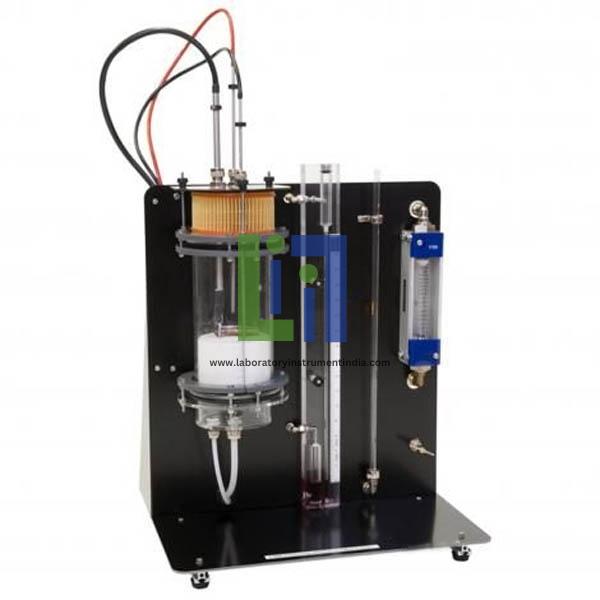

Fluid Bed Heat Transfer Module

Code: LBNY-0005-1320006

A moveable pressure tapping and separate thermocouple allow the pressure and temperature within the bed at any depth to be measured. An adjustable cylindrical heater with surface thermo couple and power meter can be imme…

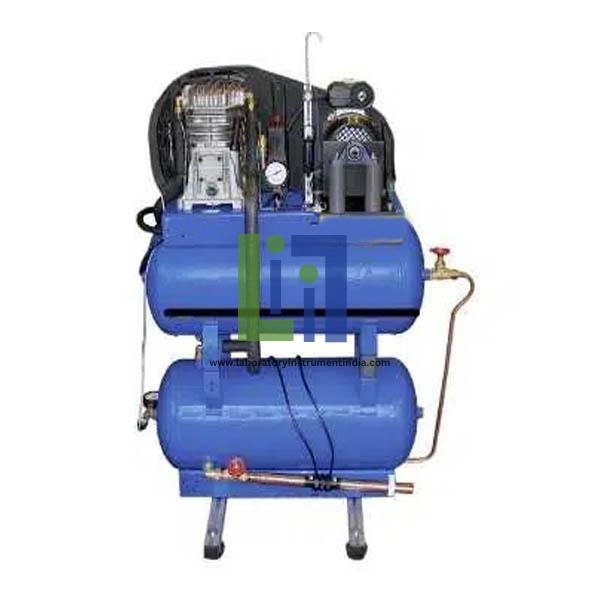

Single Stage Compressor Test Unit

Code: LBNY-0005-1320007

Integral duplex thermocouples record all relevant system temperatures and are connected to a multi-way selector switch and digital temperature indicator. A bench mounted, belt driven, single stage reciprocating air comp…

Two Stage Compressor Test Unit

Code: LBNY-0005-1320008

A bench mounted, belt driven, single stage reciprocating air compressor with a motor dynamometer allowing measurement of the motor shaft power. Intake and discharge air pressures are measured together with the air flow …

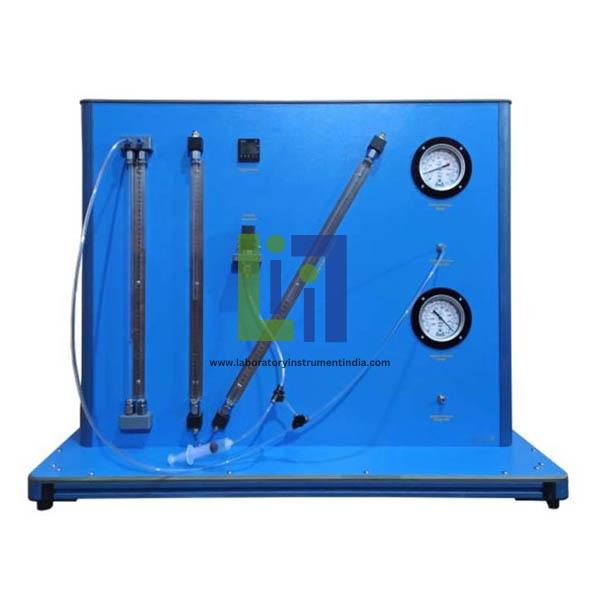

Pressure Measurement Bench

Code: LBNY-0005-1320009

The apparatus comprises of two units: the manometer and gauge assembly and the calibration of a pressure gauge assembly. During test, calibration weights are placed onto the loading platform, which is an integral part of…

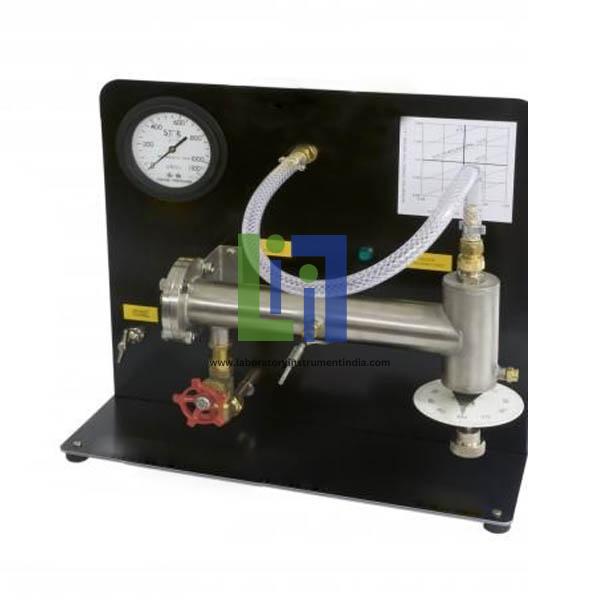

Nozzle Performance Test Module

Code: LBNY-0005-13200010

A pressure regulator, throttle valve and back pressure valve allow the air flow rate, inlet and discharge (or back) pressure to be varied. A series of convergent and convergent-divergent nozzles may be installed in one o…

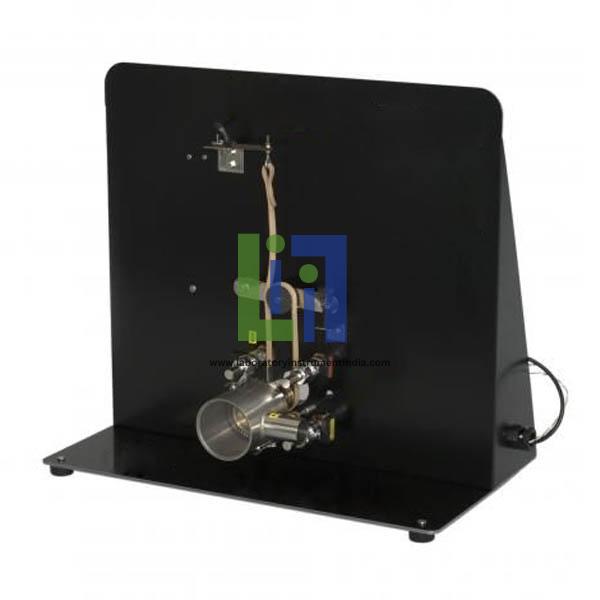

Impulse Turbine Module

Code: LBNY-0005-13200011

Inlet and outlet air pressures, temperatures and air flow rate, turbine torque and speed are recorded by a combination of instrumentation on the Compressible Flow Range base unit and the optional module. Inlet and…

Compressible Fluid Flow Equipment
